Product Description

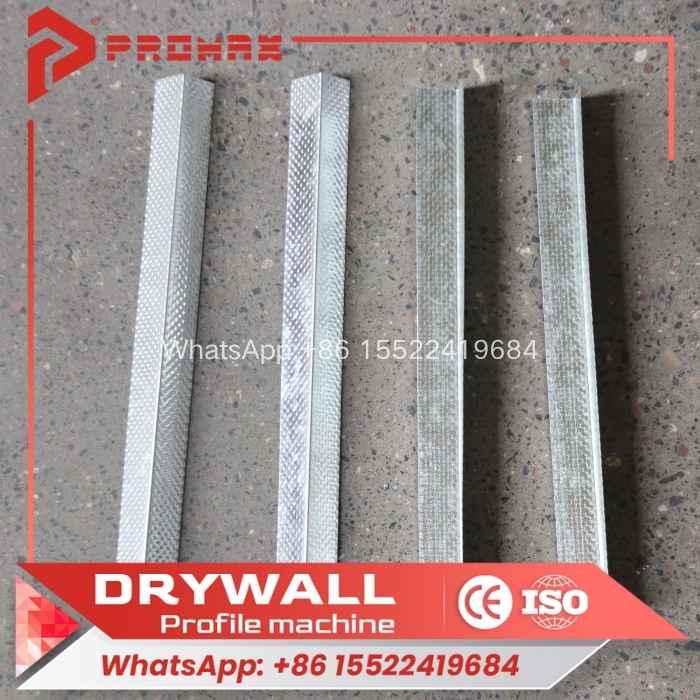

Our high-performance angle iron roll forming machine (steel angle roll forming machine) is a professional keel manufacturing machine for angle keels. It delivers ultra-precise, consistent profiles via high-speed automated operation, cutting production time and slashing waste. Built with heavy-duty steel for long-lasting use, it needs minimal maintenance—ideal for efficient, cost-effective construction projects.
8-
| Dimensions |
4500*900*1500mm |
| Weigh |
1600kg |
| Color |
The main colors are blue and yellow. |
| Feed Thickness |
1.35-2.0mm |

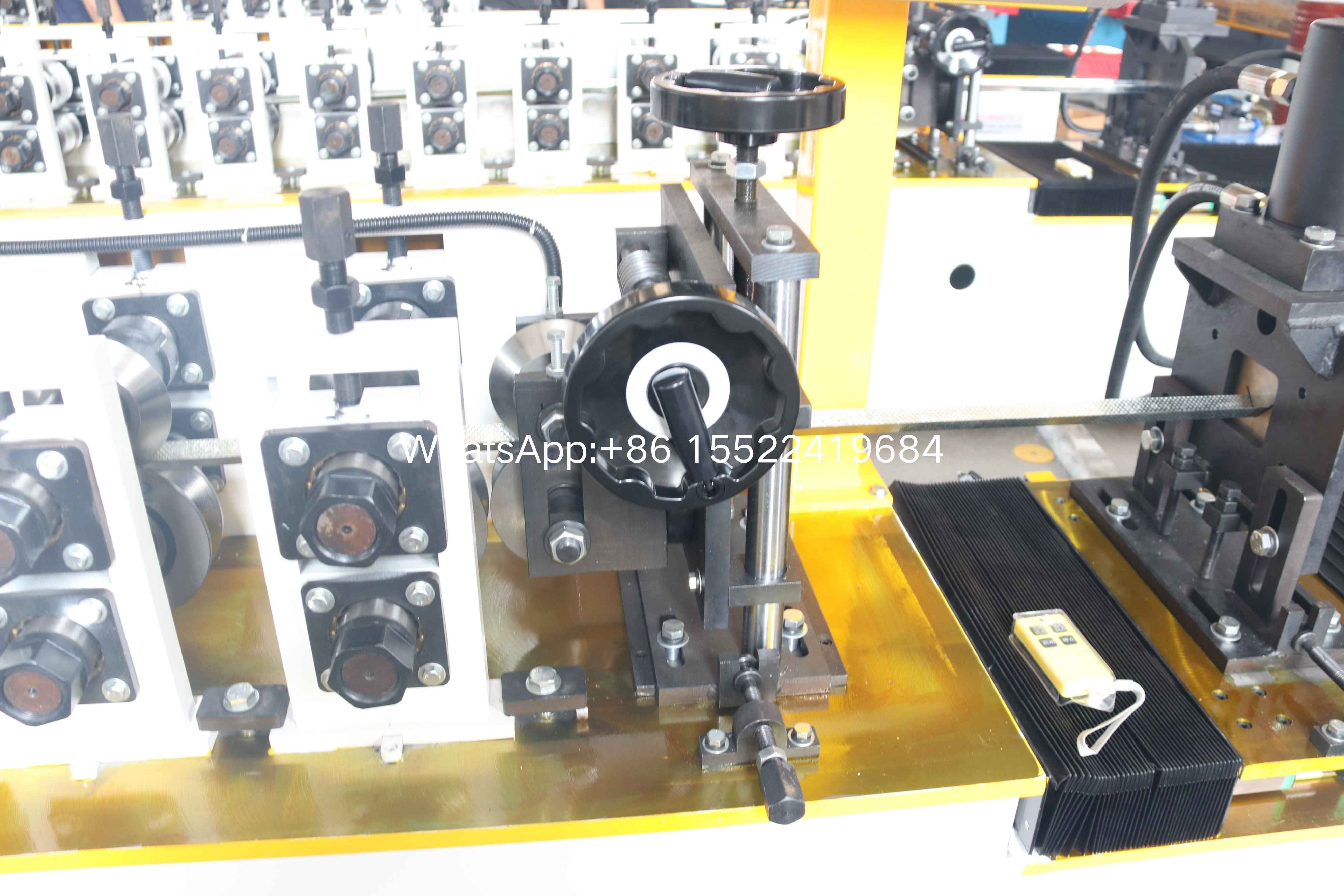

| Punching and Cutting |
Servo tracking cutting, servo motor power: 1.5 kW |

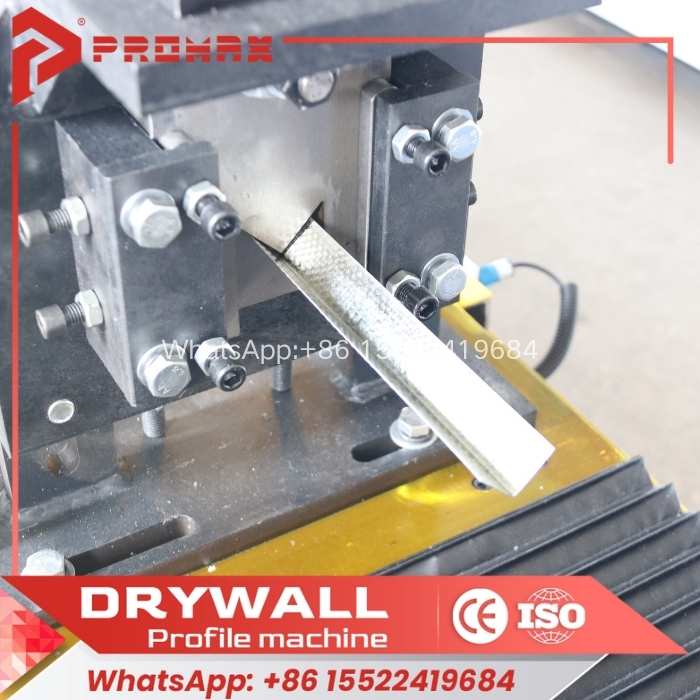

| Shearing Knif |
Cr12MoV. The shearing blade is heat - treated to HRC 58 - 60℃ |

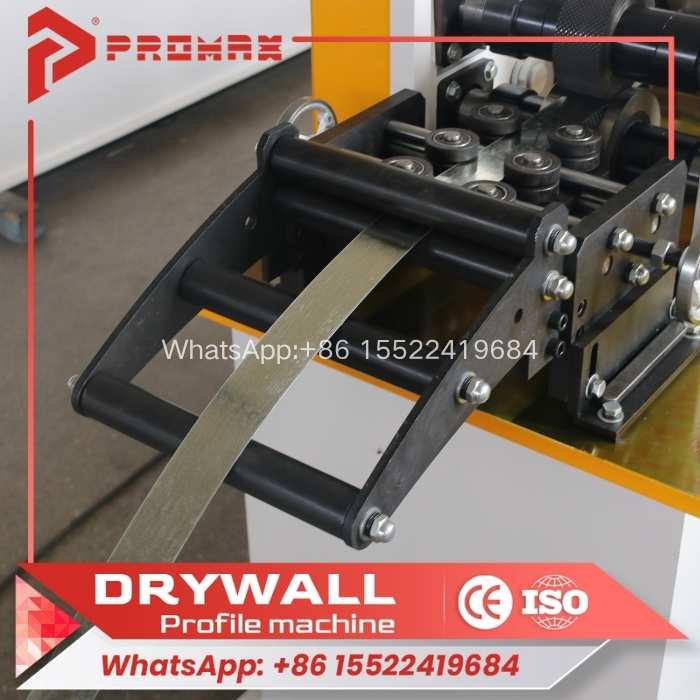

| Loading Rack |
1.5 - ton vertical manual uncoiler, 1.5T * 300mm |
| Receiving Rack |
One 3 - meter receiving rack (manual, 1 set). It should be painted blue to match the equipment. The gray parts should be changed to blue to match the equipment. |
| Shaft Diameter |
55mm Solid Shaft with Lock Washer, High-Quality 45# Steel, Forged Component |
| Operating Speed |
operating speed: 45m/min |

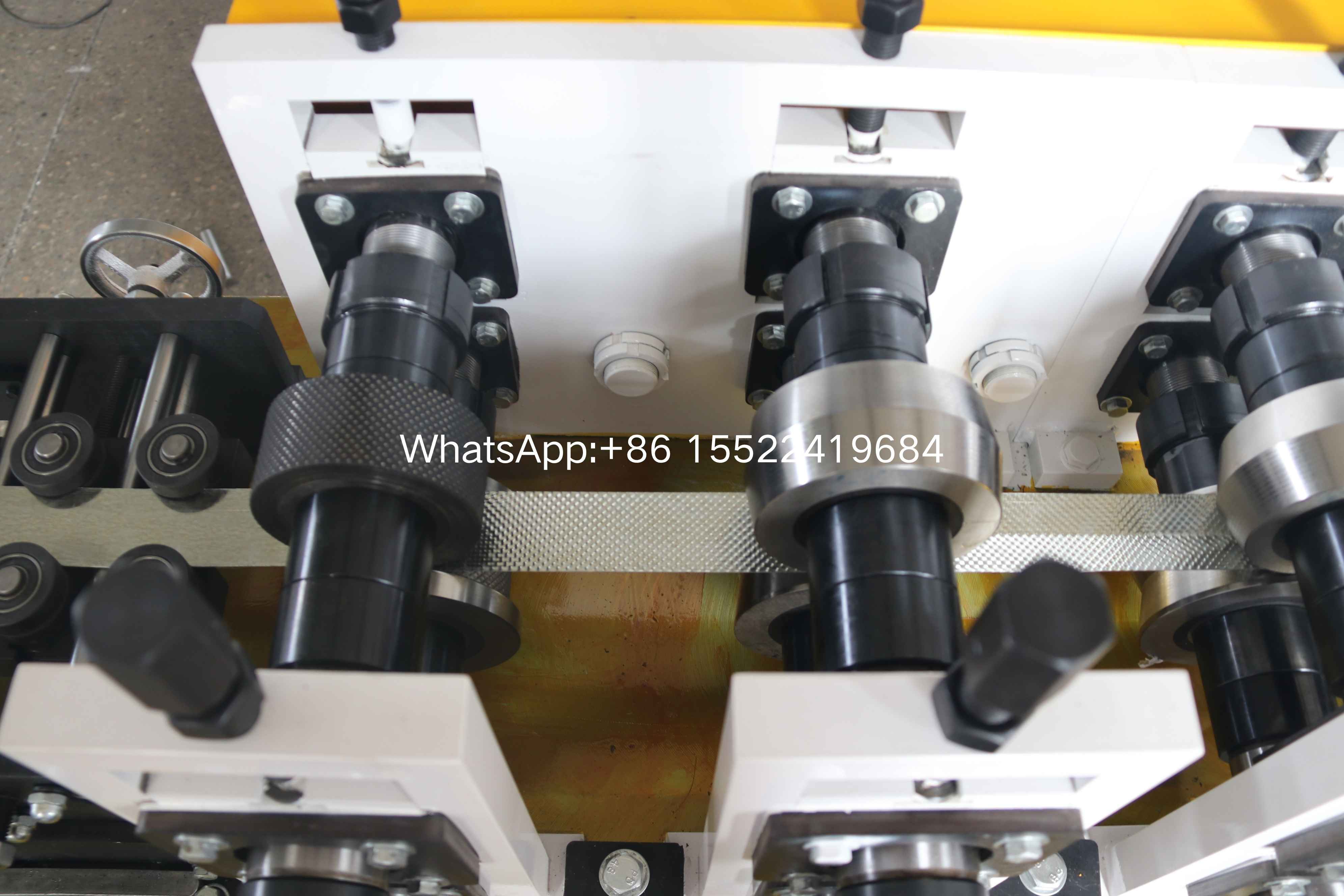

| Number of Rows |
8- row forming |
| Wheel |
Bearing steel CR12 |
| Main Motor Power |
7.5KW, Hangzhou Xuhua (with K - type reducer) |
Why Choose Us
Boasting over 28 years of experience in the field and more than 1,200 successful installations worldwide, we have established ourselves as a reliable leader in roll forming technology. Our equipment is built to adhere to strict CE and ISO standards, ensuring consistent quality and safe operation at all times. For added peace of mind, we offer extended warranty plans that can cover your purchase for up to 18 months. To ensure your machines operate at peak performance, we also provide professional on-site setup and hands-on operator training with every unit.
