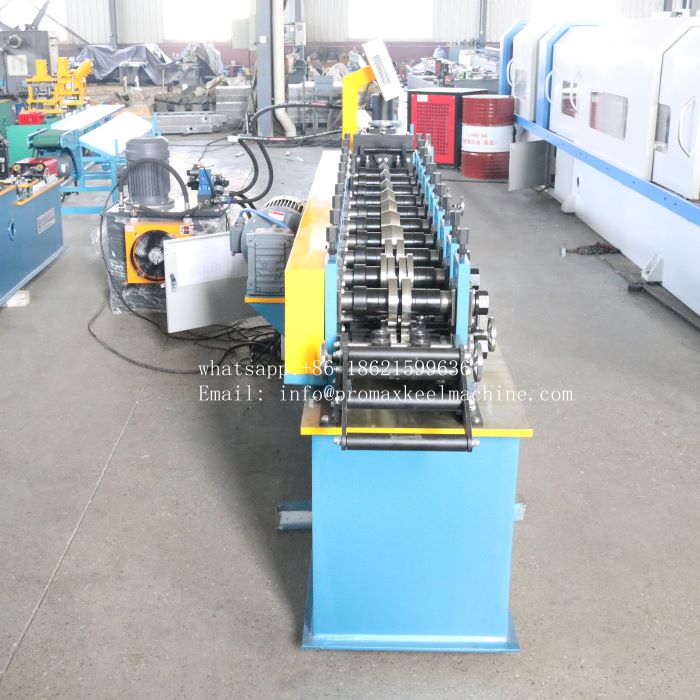

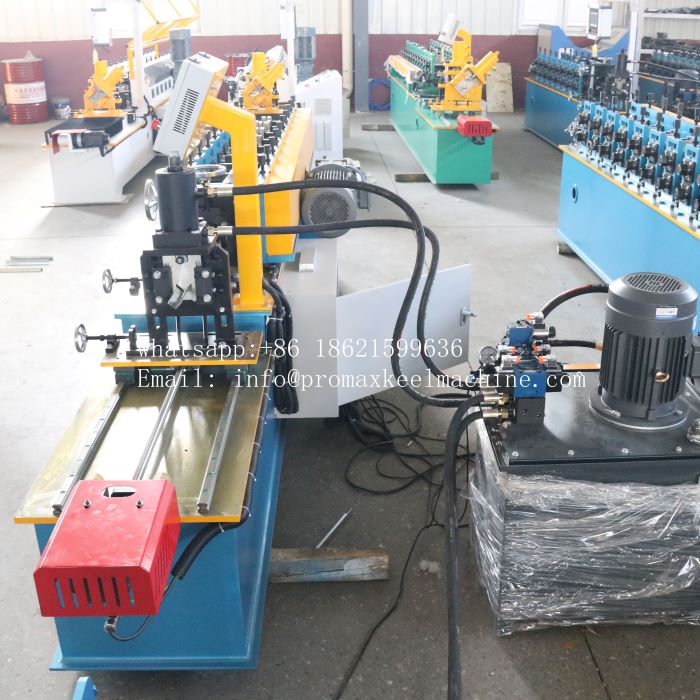

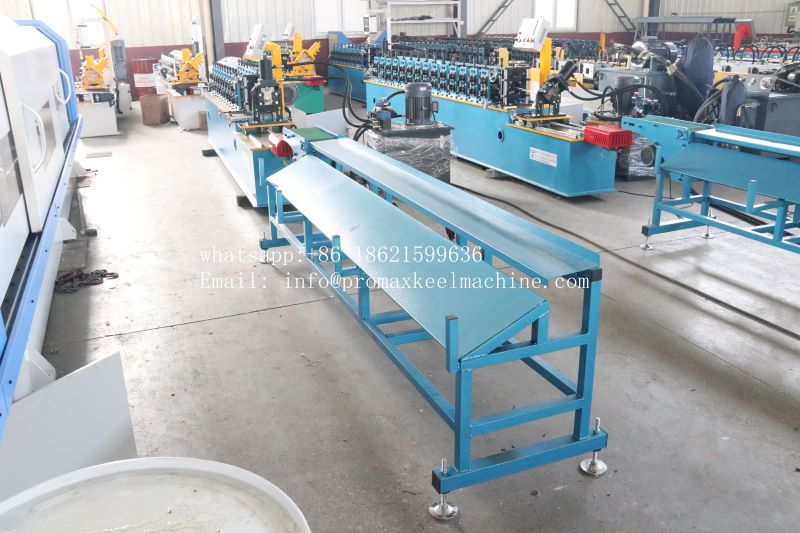

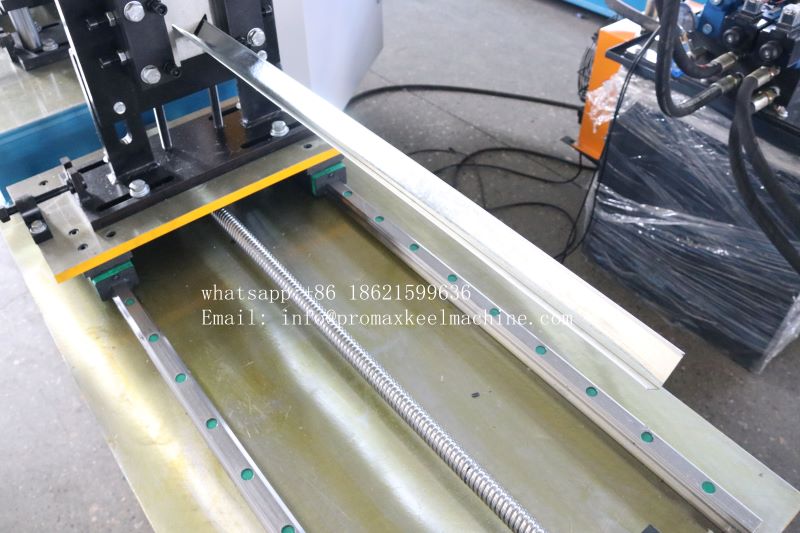

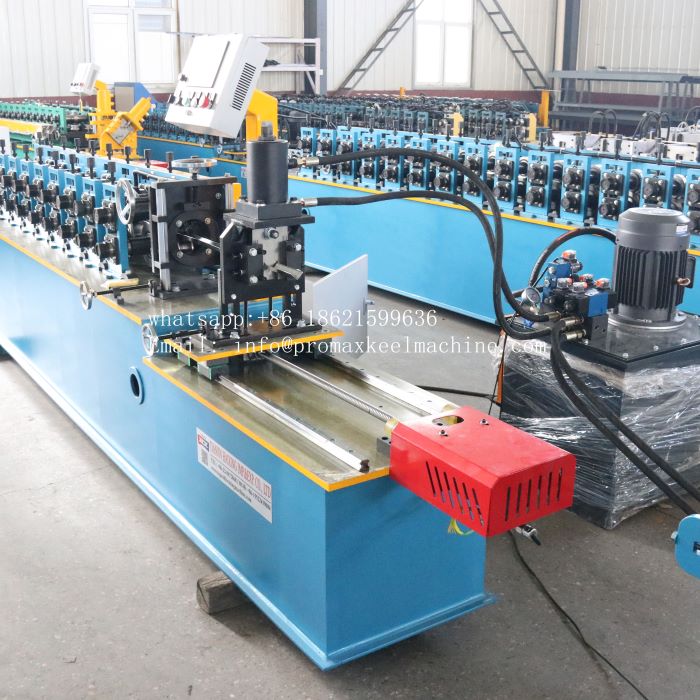

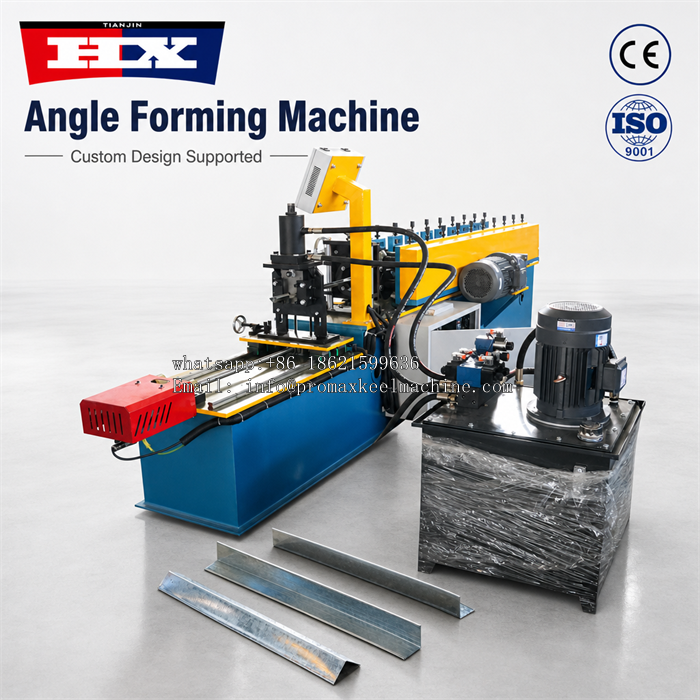

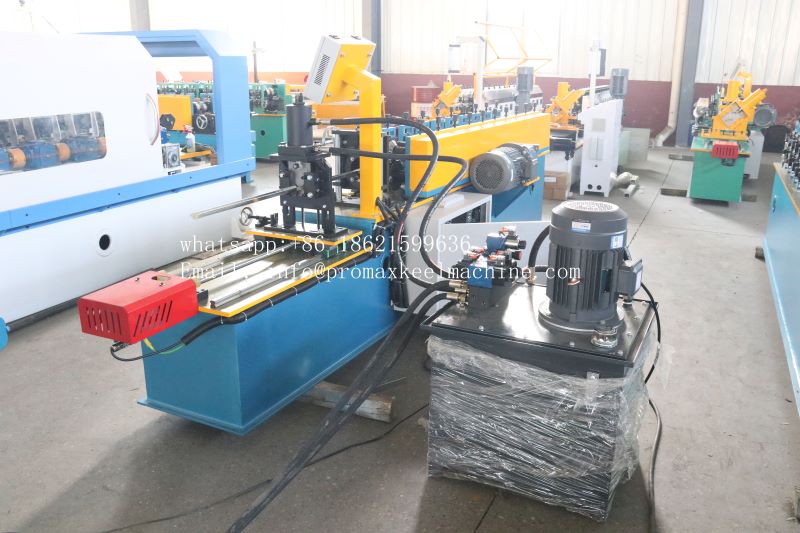

Metal wall angle roll forming machine

Designed for construction and industrial market, the Metal wall angle roll forming machine is an automated rolling equipment for the efficient and precise production of equal or unequal leg angle steel (L-shaped steel). As the most fundamental structural profile, angle steel is widely used in building frames, equipment supports, shelving systems, etc., making it an indispensable basic material for Peru's construction, manufacturing, and warehousing/logistics industries. This equipment is dedicated to helping local clients achieve independent, large-scale production of angle steel.

Metal wall angle roll forming machine
1	Formed Material	GI/GL, PPGI/PPGL
2	Thickness	1.35-2.0mm
3	Decoiler	Manual decoiler(will give you as free)
4	Roller station	8 rows(As your requirement)
5	Material of rollers	45#steel, forging with chromium plate 0.05mm
6	Cutter	Cr12 Mov quenched treatment 58-60℃
7	Power	7.5+5.5Kw
8	Control system Language	English, Spanish, etc.(Support multiple languages)
9	Voltage	380V, 50HZ, 3Phase
10	Forming Speed	15-20m/min(The speed depends on the shape of the tile and thickness of the material.)

Core Features and Advantages:

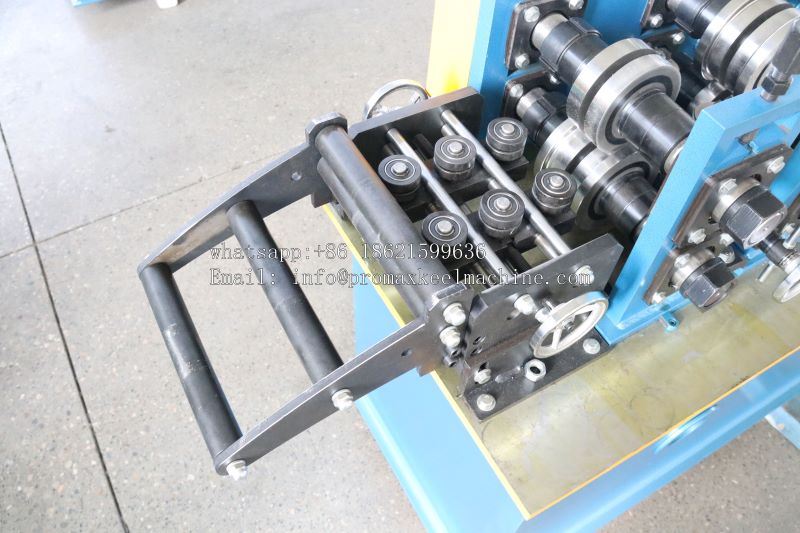

1.  Specialized Focus, Efficient Production: The Metal wall angle roll forming machine is exclusively optimized for L-shaped studs. It automates the entire process from coil decoiling and leveling to continuous roll forming and fixed-length cutting, ensuring precise product dimensions, consistent strength, and far superior production efficiency compared to traditional methods.

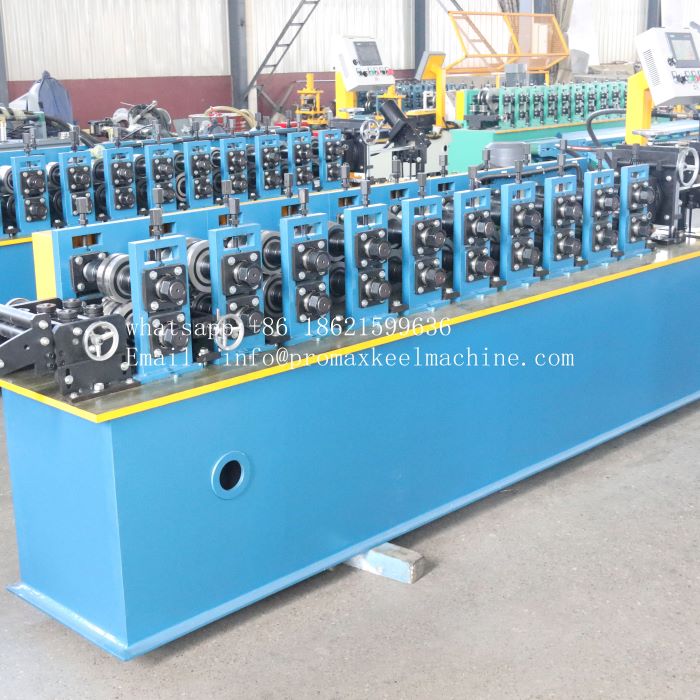

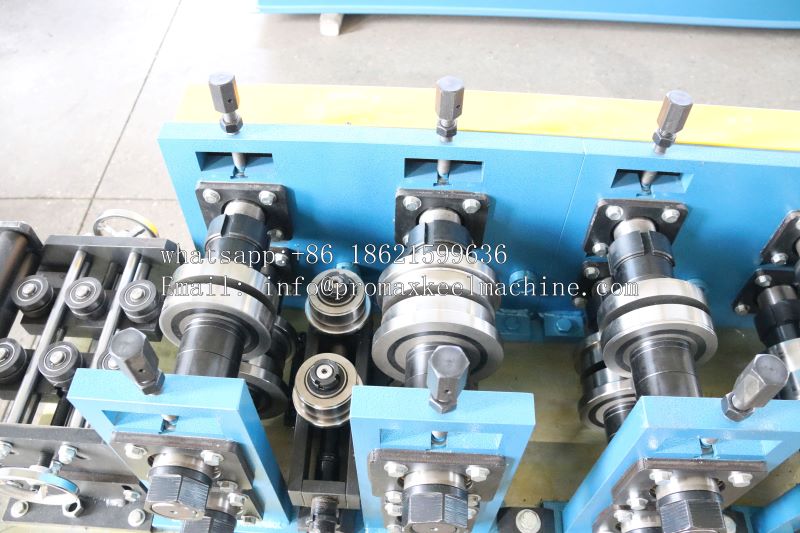

2.High Precision and Excellent Stability.The core forming section employs high-quality alloy steel rollers, processed by heat treatment, ensuring dimensional accuracy at every forming stage.

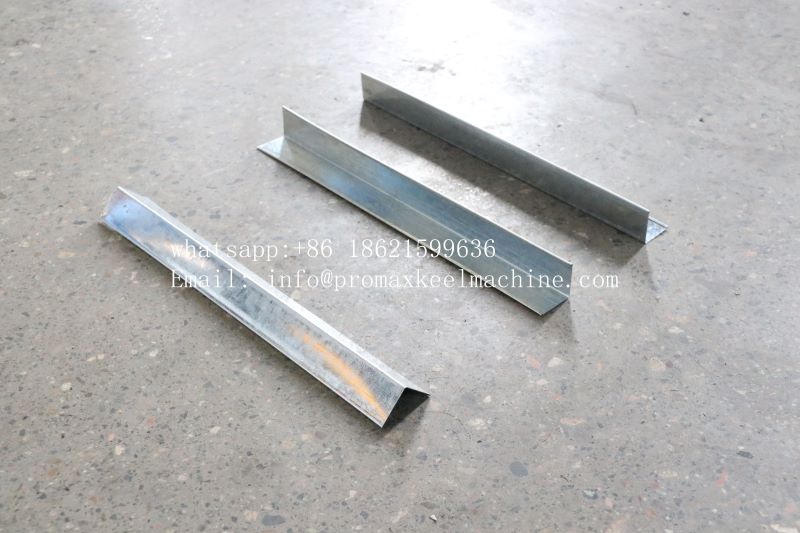

3.Excellent Forming Quality.The cold roll forming process does not damage the steel's galvanized layer or material properties, ensuring the stud's corrosion resistance and strength. The formed L-section studs have a smooth, flat surface free from scratches, clear contours, and superior mechanical properties.

Primary Application Scenarios:

The angle steel produced by this Steel Grid Machine serves as the "industrial skeleton" in the following fields:

1.Construction and Structure: Beam-column connectors, roof purlin supports, lintels for doors/windows, and seismic reinforcement components for light building steel structures.

2.Industry and Mining: Equipment supports, platform guardrails, conveyor belt frames, and components for mining support structures.
