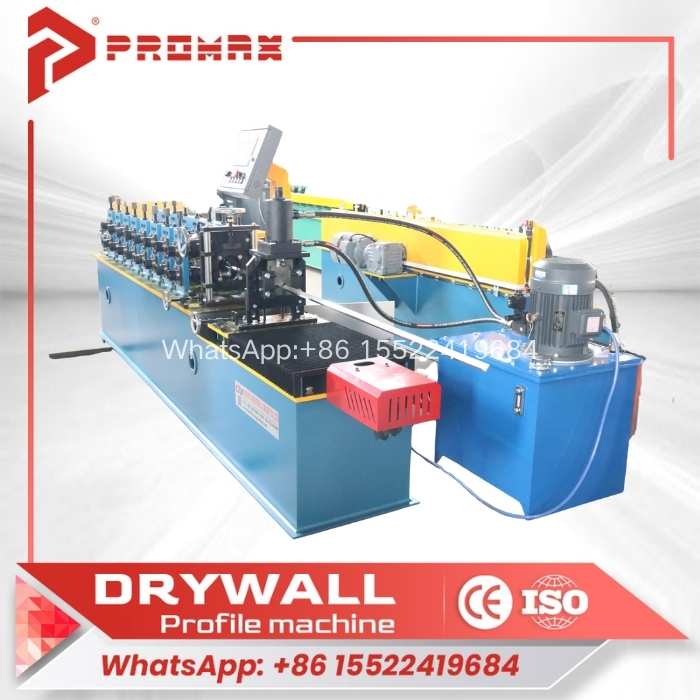

Product Description

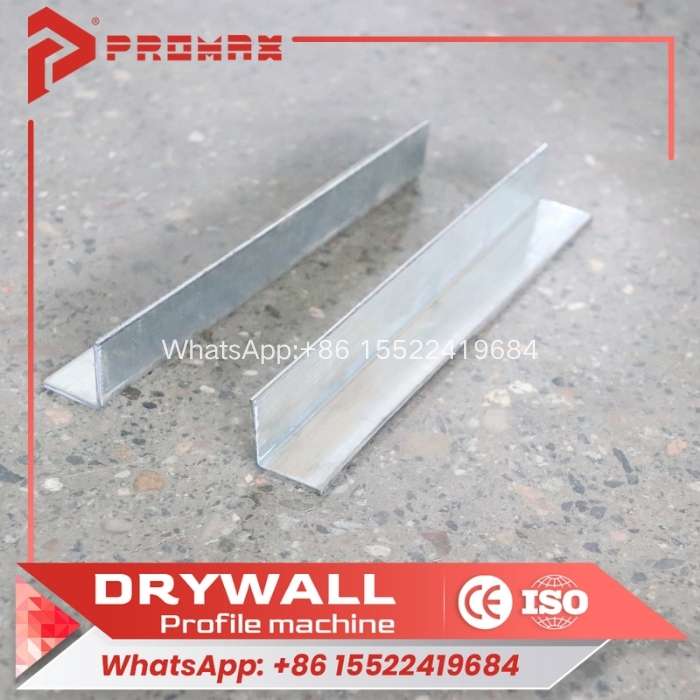

Our high-performance angle forming machine (channel forming machine) is a top-tier lip channel machine for sale. Engineered for precise L-stud forming, it delivers consistent, high-quality profiles via automated efficiency—saving time and cutting waste. Built durable for low-maintenance use, it adapts to specs, boosting productivity for cost-effective construction solutions.
| Dimensions |
4500*900*1500mm |
| Weigh |
1600kg |
| Color |
The main colors are blue and yellow. |
| Feed Thickness |
1.35-2.0mm |
| Punching and Cutting |
Servo tracking cutting, servo motor power: 1.5 kW |
| Shearing Knif |
Cr12MoV. The shearing blade is heat - treated to HRC 58 - 60℃ |
| Loading Rack |
1.5 - ton vertical manual uncoiler, 1.5T * 300mm |
| Receiving Rack |
One 3 - meter receiving rack (manual, 1 set). It should be painted blue to match the equipment. The gray parts should be changed to blue to match the equipment. |
| Shaft Diameter |
55mm Solid Shaft with Lock Washer, High-Quality 45# Steel, Forged Component |
| Operating Speed |
operating speed: 45m/min |
| Number of Rows |
8- row forming |
| Wheel |
Bearing steel CR12 |
| Main Motor Power |
7.5KW, Hangzhou Xuhua (with K - type reducer) |
