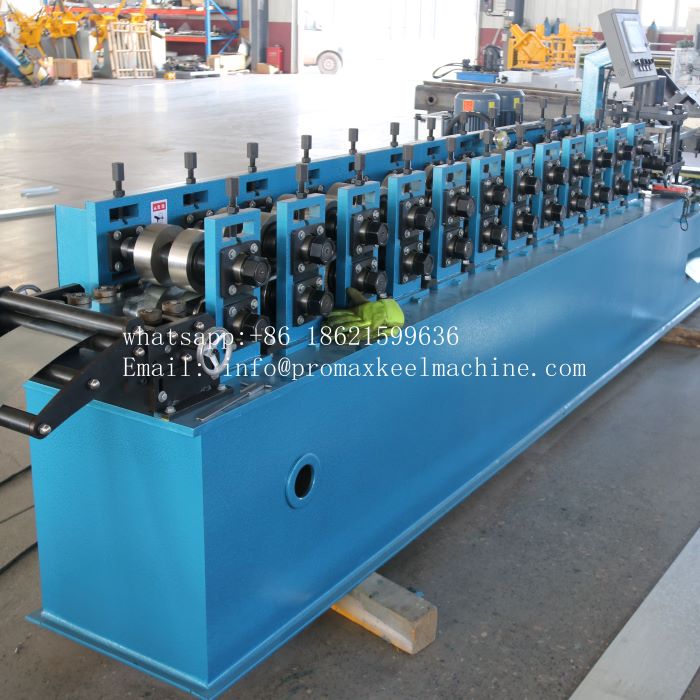

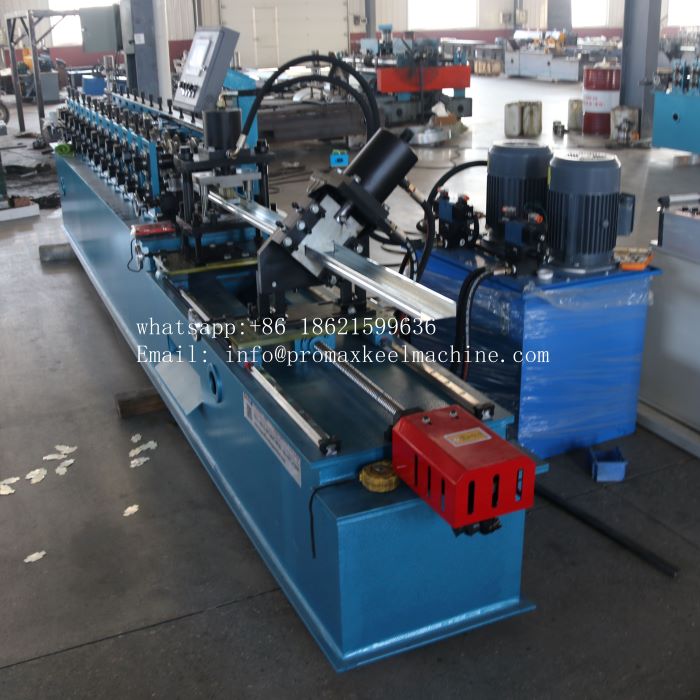

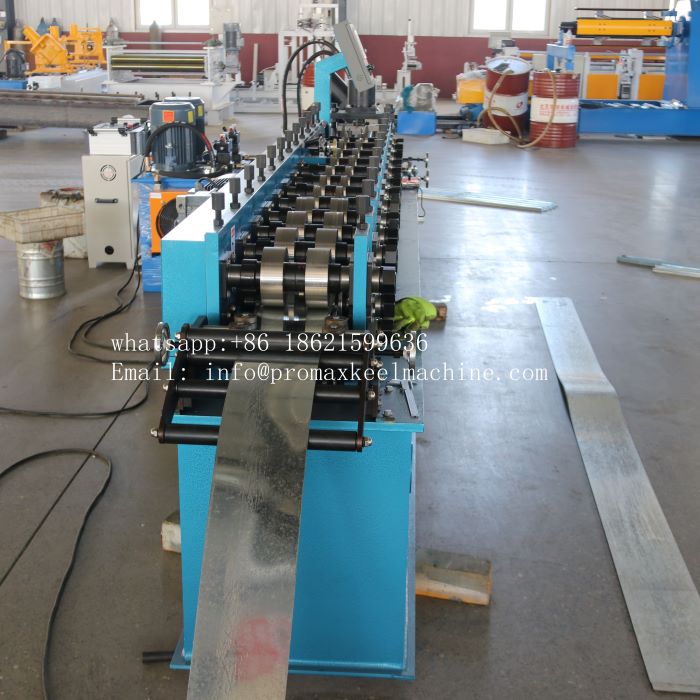

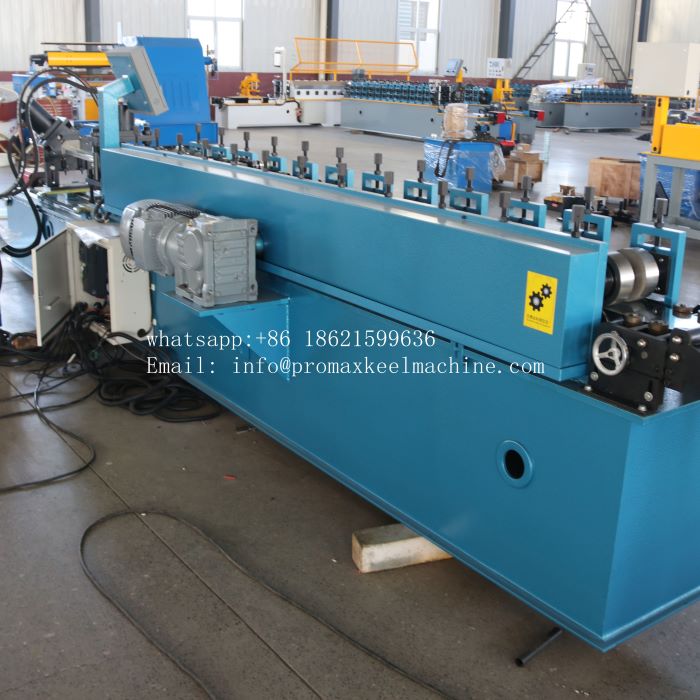

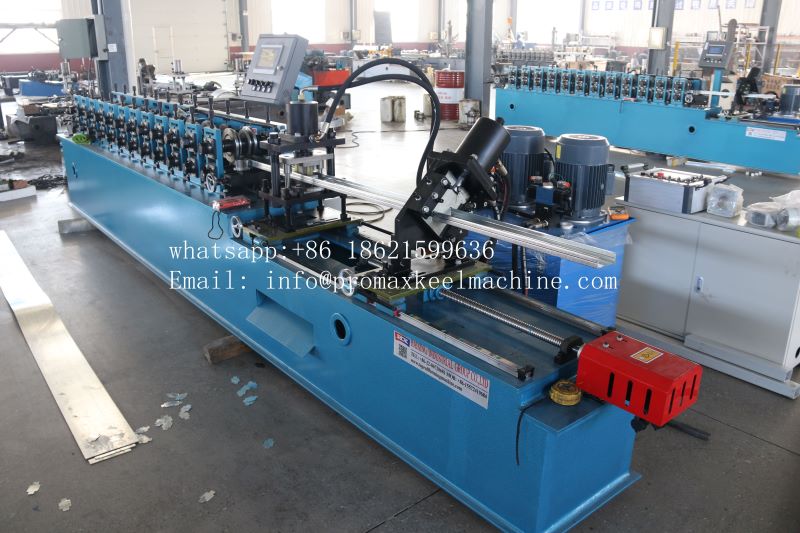

Drywall C channel profiling machine

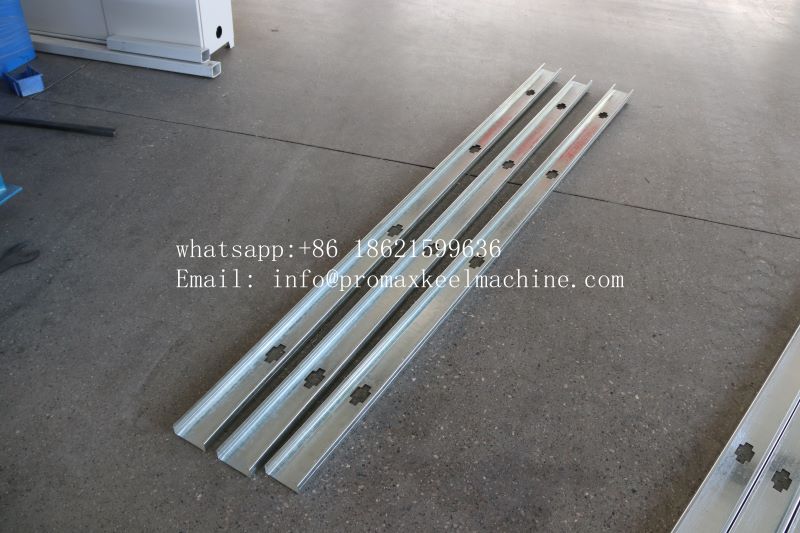

Our Drywall C Channel Profiling Machine represents the culmination of decades of expertise in cold roll forming technology, engineered specifically for the continuous production of C-shaped light steel keels used in drywall partition and ceiling systems. This equipment transforms galvanized steel coils into precision-formed C channels through an integrated sequence of feeding, leveling, punching, roll forming, and cutting operations—all governed by an intelligent PLC control system that ensures consistent output quality with minimal operator intervention.

Drywall C channel profiling machine
1	Formed Material	GI/GL, PPGI/PPGL
2	Thickness	0.45-0.9mm
3	Decoiler	Manual decoiler(will give you as free)

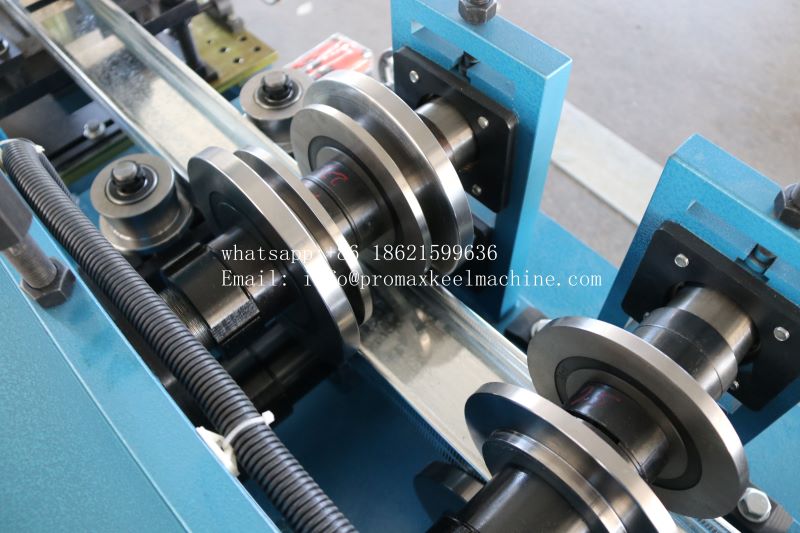

4	Roller station	12 rows(As your requirement)
5	Material of rollers	45#steel, forging with chromium plate 0.05mm
6	Cutter	Cr12 Mov quenched treatment 58-60℃
7	Power	7.5+5.5Kw
8	Control system Language	English, Spanish, etc.(Support multiple languages)
9	Voltage	380V, 50HZ, 3Phase
10	Forming Speed	40-50m/min(The speed depends on the shape of the tile and thickness of the material.)

Metal Stud Roll Forming Machine flexibility is a defining characteristic of our design philosophy. The system accommodates various material types including pre-galvanized steel, hot-rolled steel, cold-rolled steel, and stainless steel, allowing manufacturers to adapt to diverse project specifications and market demands . The equipment's modular architecture supports customizable profile dimensions, enabling the production of standard drywall channels as well as specialized configurations for unique structural requirements.

The control architecture of this Drywall C Channel Profiling Machine incorporates a sophisticated PLC system paired with an intuitive touchscreen human-machine interface. Operators can effortlessly configure production parameters such as batch quantities, cut lengths, and hole patterns through the interface, with the system automatically executing the complete manufacturing sequence from coil loading to finished product stacking . This level of automation significantly reduces labor requirements while maintaining the high precision and repeatability essential for construction-grade components.

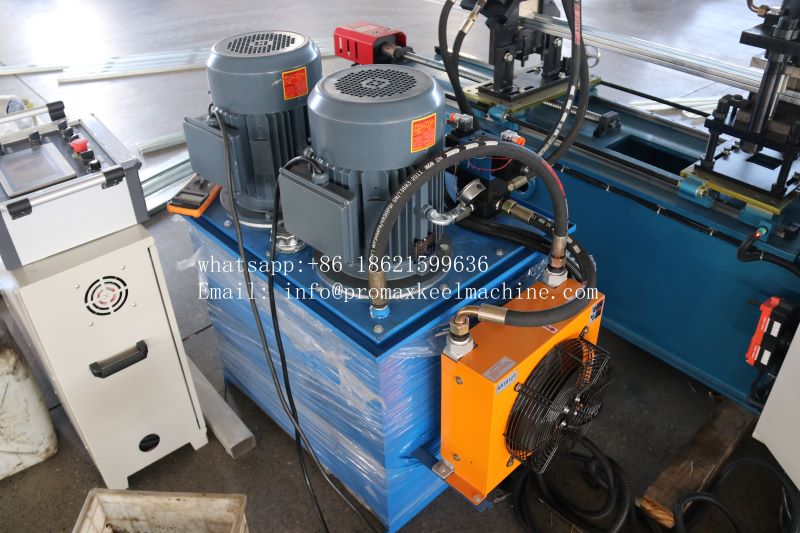

Our Drywall C channel profiling machine lineage informs every engineering decision, from the heavy-duty welded steel frame that dampens vibration during high-speed operation to the precision hydraulic cutting mechanism that delivers clean, burr-free edges. The equipment is designed for seamless integration into existing production environments, with flexible configuration options for decoiler capacity, discharge systems, and safety enclosures. Whether producing ceiling channels, partition studs, or specialized profiles, this cold roll forming solution delivers the reliability, efficiency, and profile quality that modern drywall construction demands.
