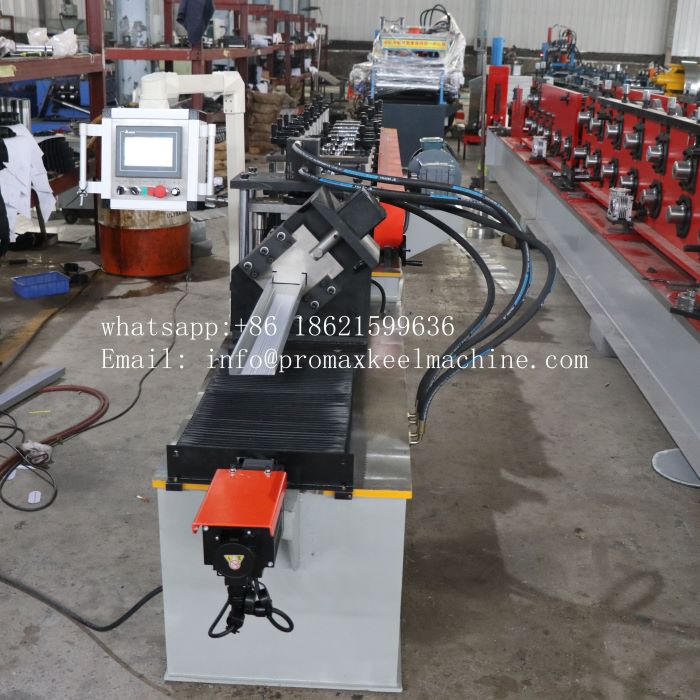

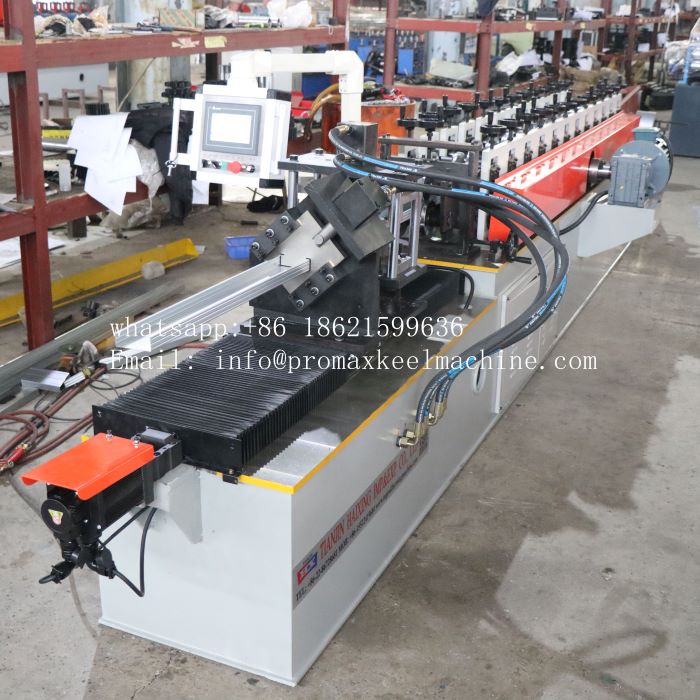

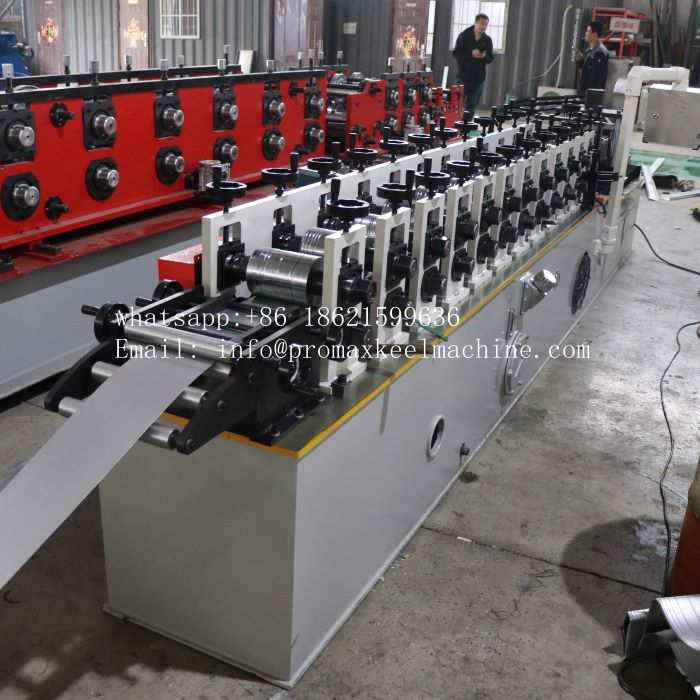

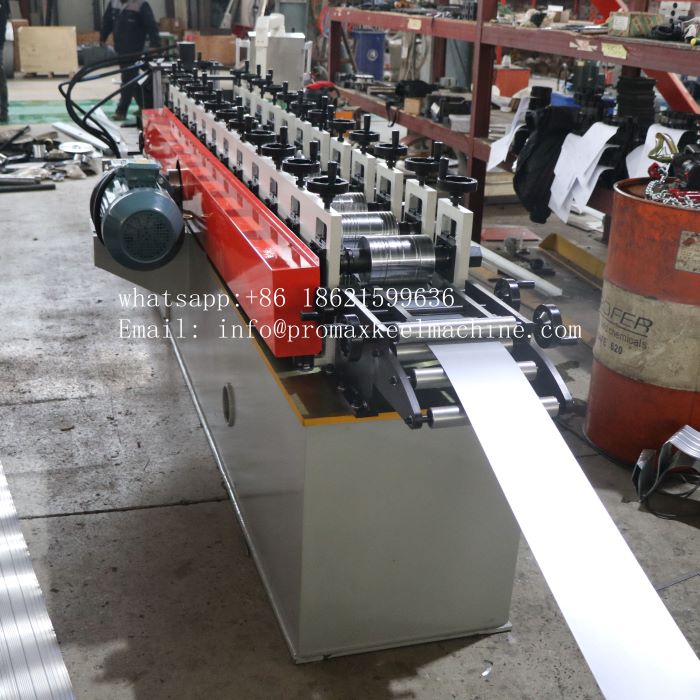

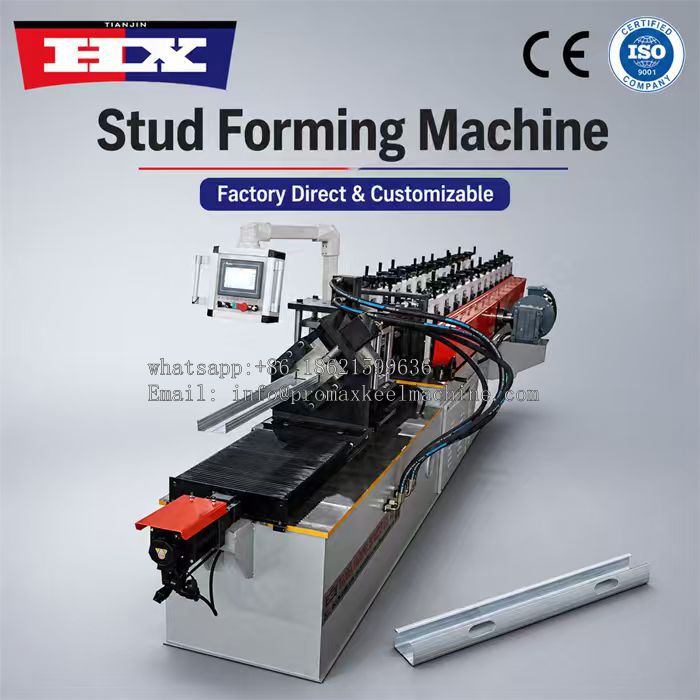

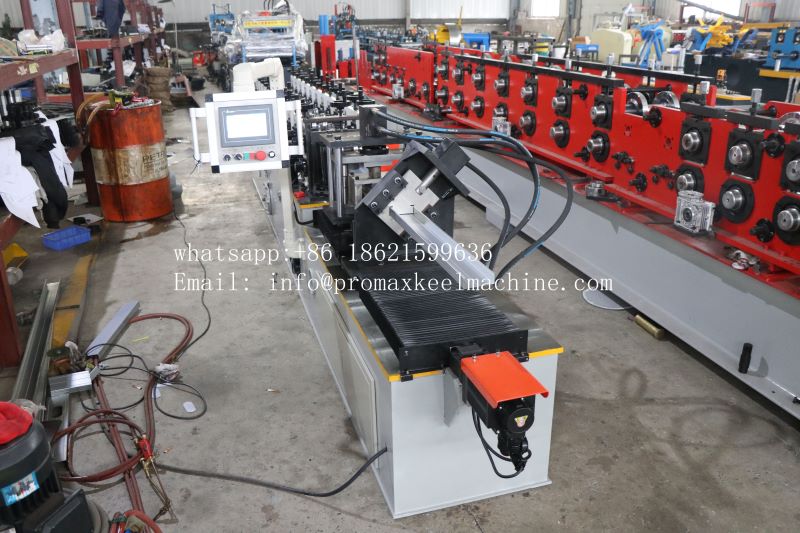

C channel steel stud roll forming machine

Our C channel steel stud roll forming machine is an intelligent, fully automated production line specifically engineered for the Chilean construction market. It specializes in high-efficiency, high-precision manufacturing of C-shaped light-gauge steel studs—the fundamental component for modern drywall partition and ceiling systems.

C channel steel stud roll forming machine
1	Formed Material	GI/GL, PPGI/PPGL
2	Thickness	0.45-0.9mm
3	Decoiler	Manual decoiler(will give you as free)
4	Roller station	12 rows(As your requirement)
5	Material of rollers	45#steel, forging with chromium plate 0.05mm

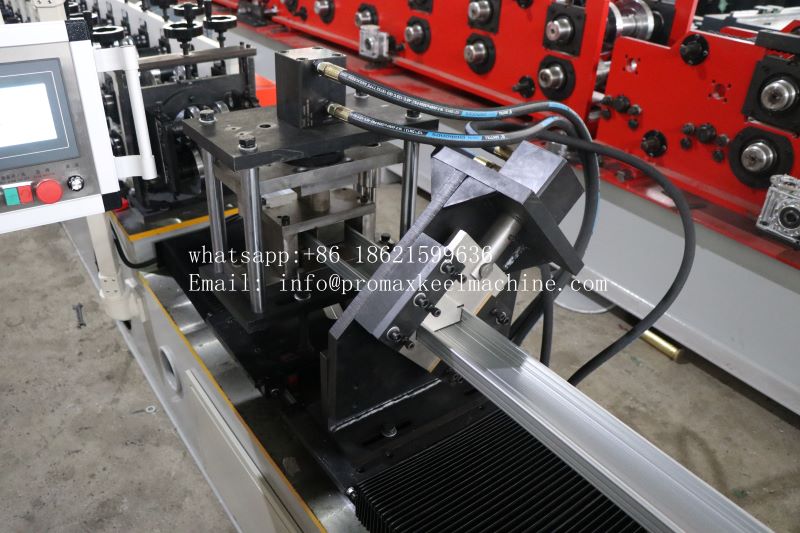

6	Cutter	Cr12 Mov quenched treatment 58-60℃
7	Power	7.5+5.5Kw
8	Control system Language	English, Spanish, etc.(Support multiple languages)
9	Voltage	380V, 50HZ, 3Phase
10	Forming Speed	40-50m/min(The speed depends on the shape of the tile and thickness of the material.)

Core Features and Advantages:

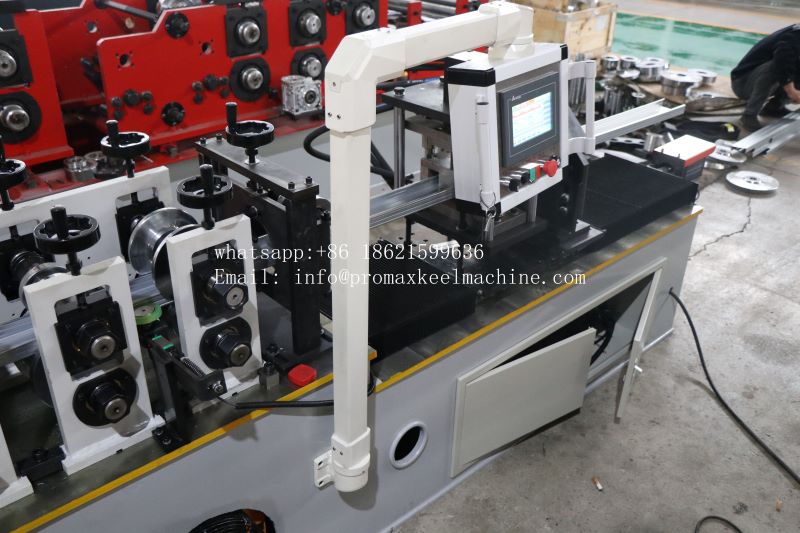

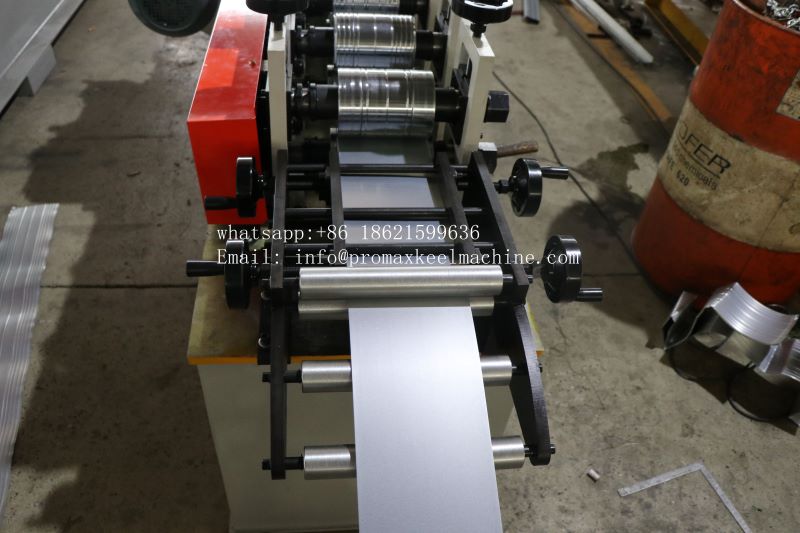

1.  High Efficiency and Automated Production.Utilizes PLC for automatic control, enabling fully or semi-automated production from uncoiling, leveling, punching/notching, continuous roll forming, fixed-length cutting, to output.

2.Adjustable production speed, significantly faster than traditional processing methods, greatly boosting output to meet the supply demands of large-scale projects.

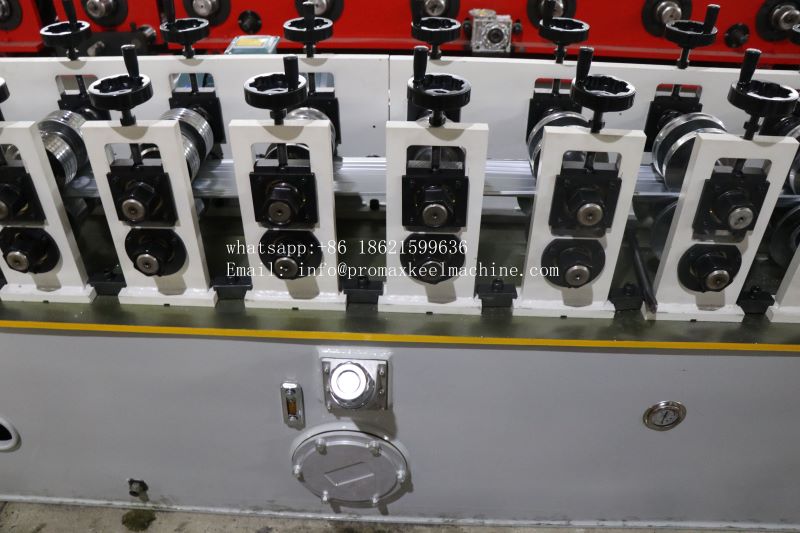

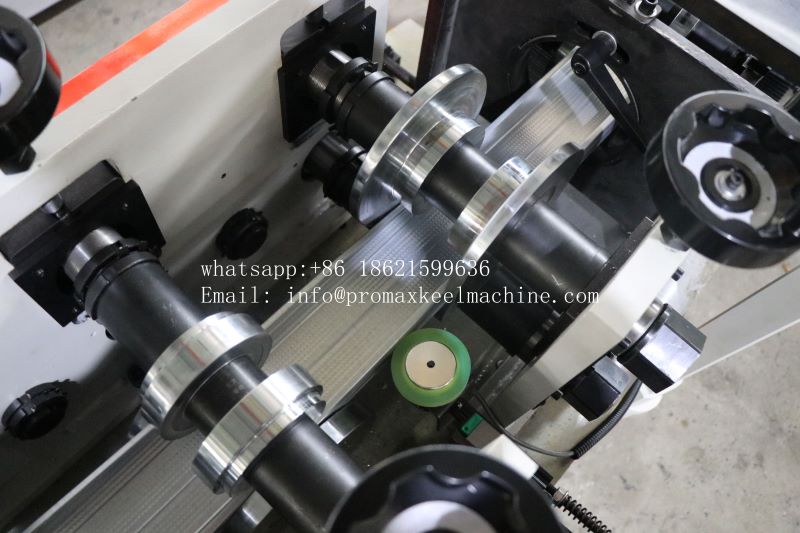

3.High Precision and Excellent Stability.The core forming section employs high-quality alloy steel rollers, processed by precision CNC machining and heat treatment, ensuring dimensional accuracy at every forming stage.

4.Robust machine structure and stable operation guarantee that the produced C-section studs have minimal dimensional tolerance, good straightness, and strong interchangeability, providing great convenience for subsequent construction and installation.

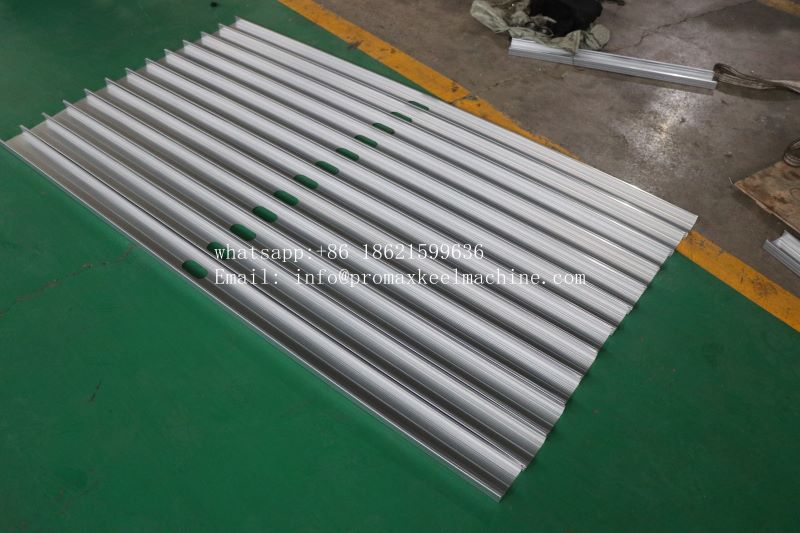

5.Excellent Forming Quality.The cold roll forming process does not damage the steel's galvanized layer or material properties, ensuring the stud's corrosion resistance and strength. The formed C-section studs have a smooth, flat surface free from scratches, clear contours, and superior mechanical properties.

6.Excellent Forming Quality. The cold roll forming process does not damage the steel's galvanized layer or material properties, ensuring the stud's corrosion resistance and strength. The formed C-section studs have a smooth, flat surface free from scratches, clear contours, and superior mechanical properties.
