Product Description

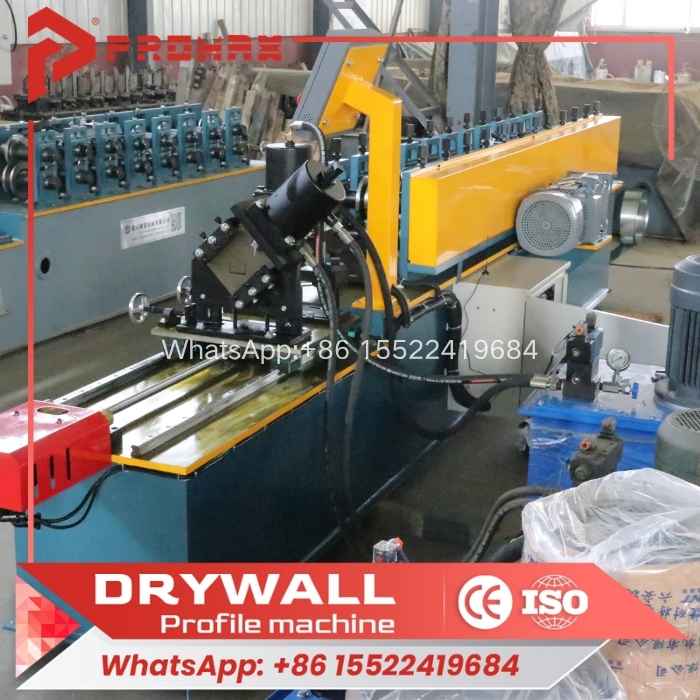

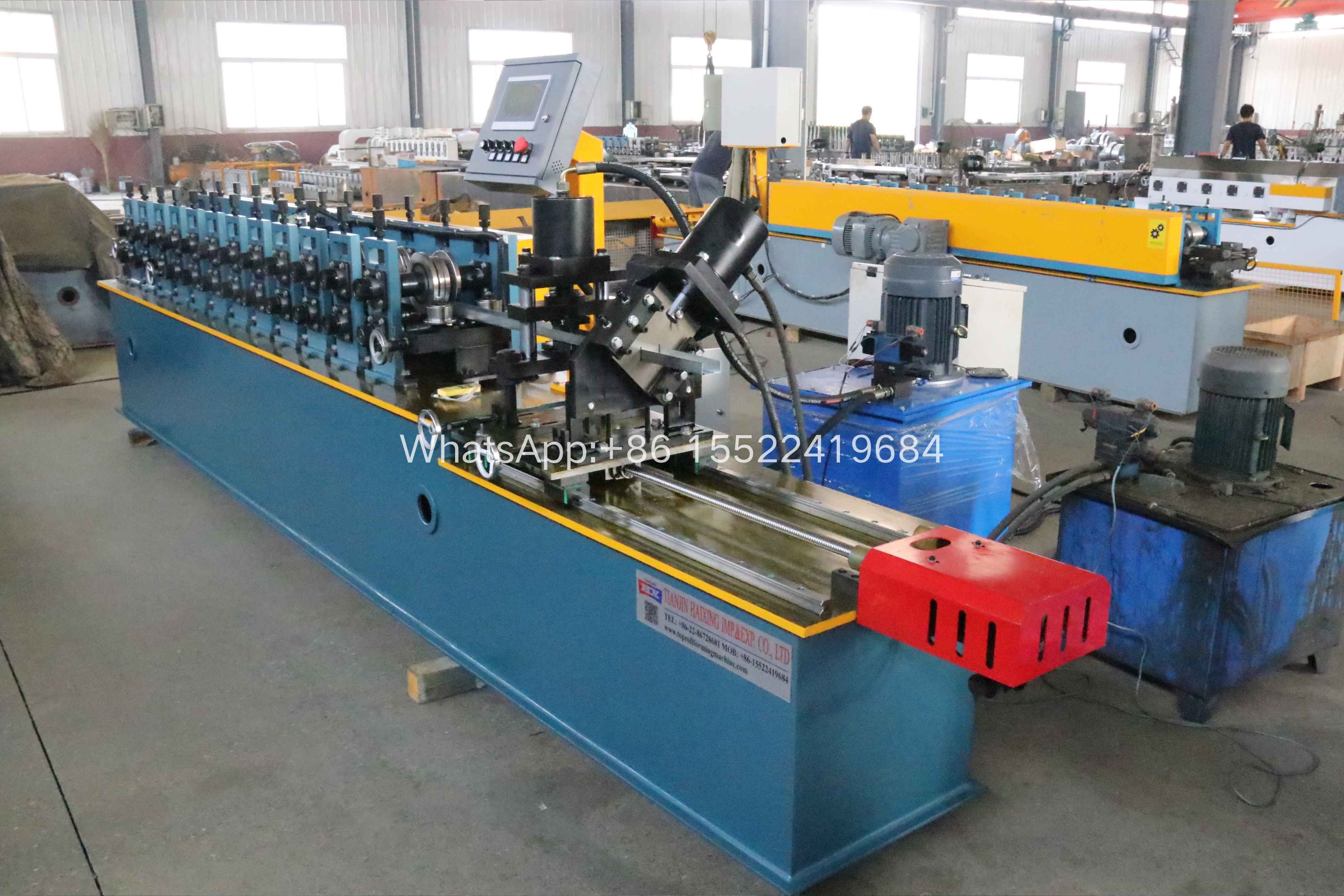

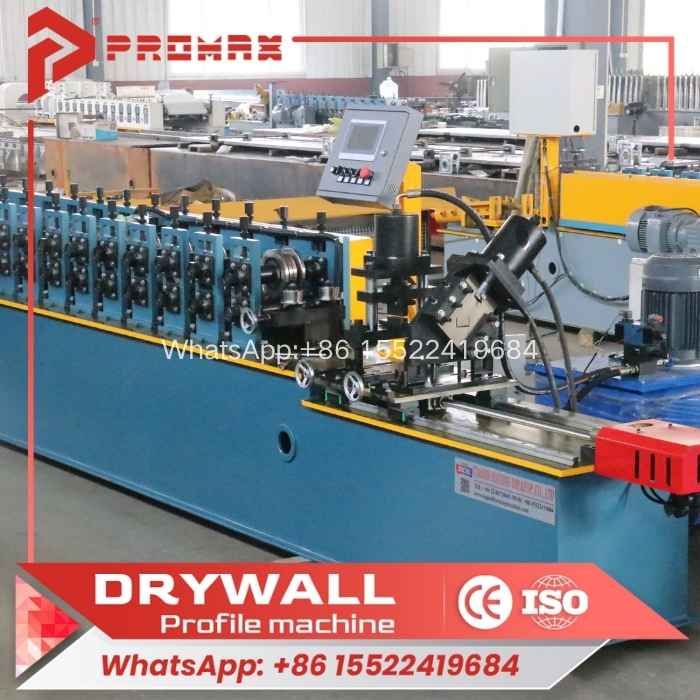

Our high-performance U-channel roll forming machine (drywall profile machine) is a reliable ron keel making machine engineered for excellence. It delivers precise, consistent profiles with automated continuous operation, slashing production time and minimizing material waste. Built robust and durable for long-term, low-maintenance use, it flexibly adapts to diverse specifications. A cost-effective solution that boosts productivity, perfect for construction projects demanding stability, precision, and efficient workflow.
| Dimensions |
4700*900*1500mm |
| Weigh |
2000kg |
| Color |
Blue |
| Feed Thickness |
0.45-0.9mm |

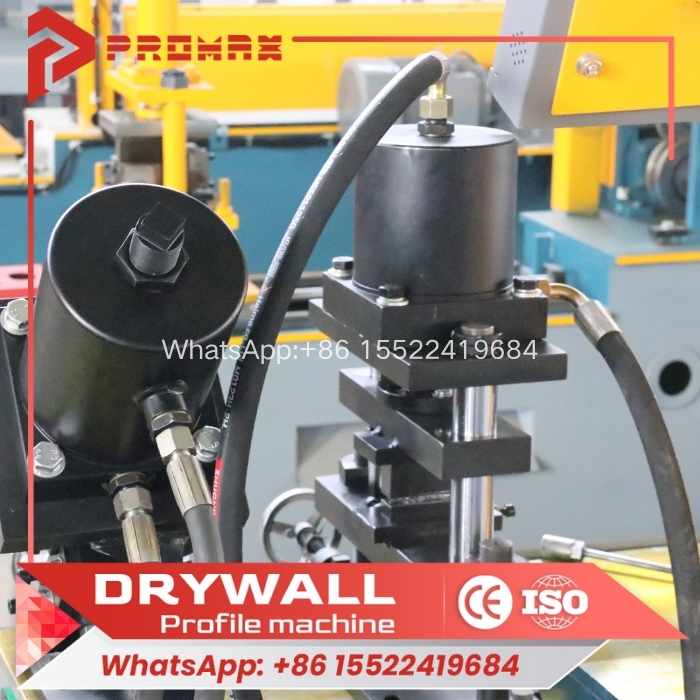

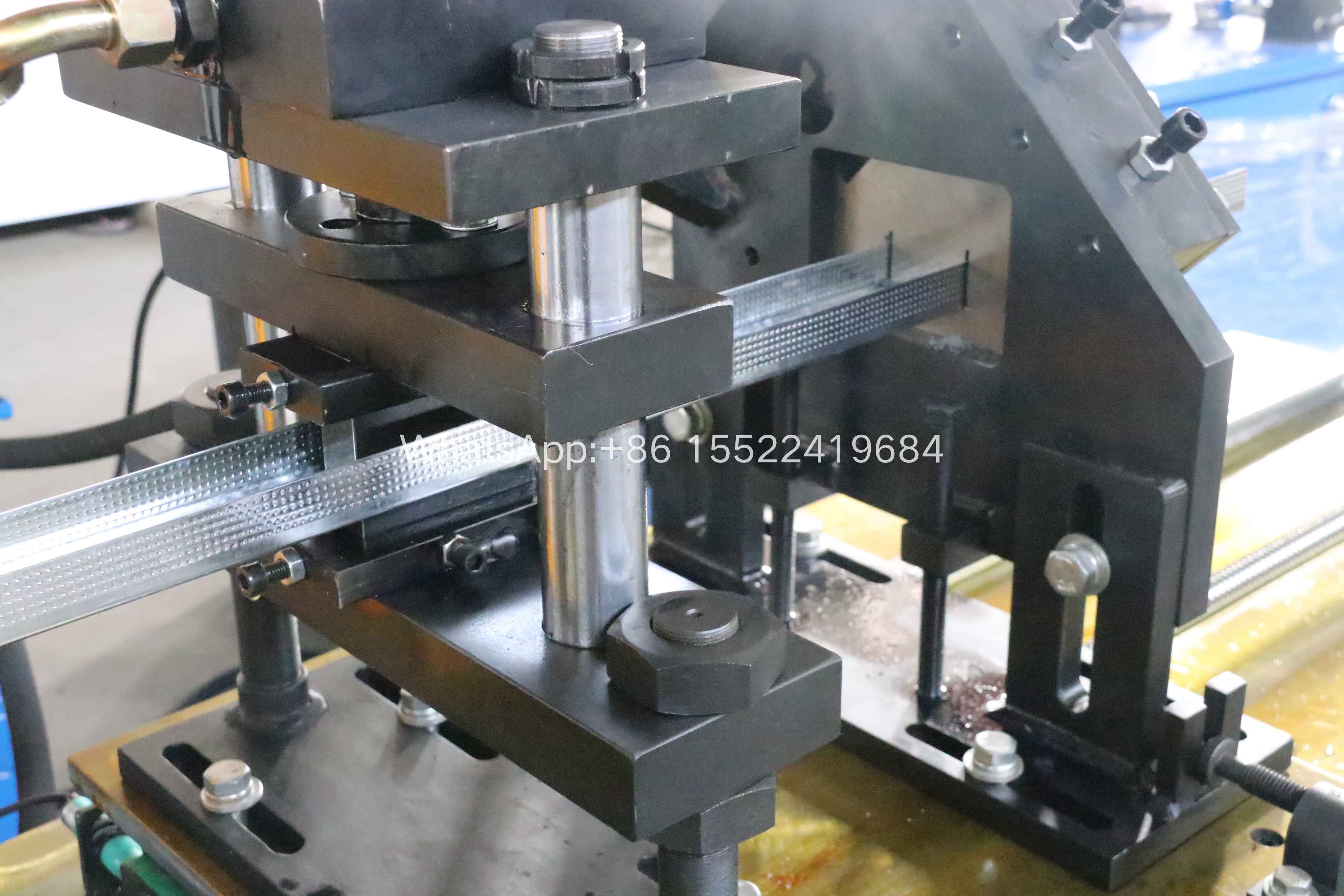

| Punching and Cutting |

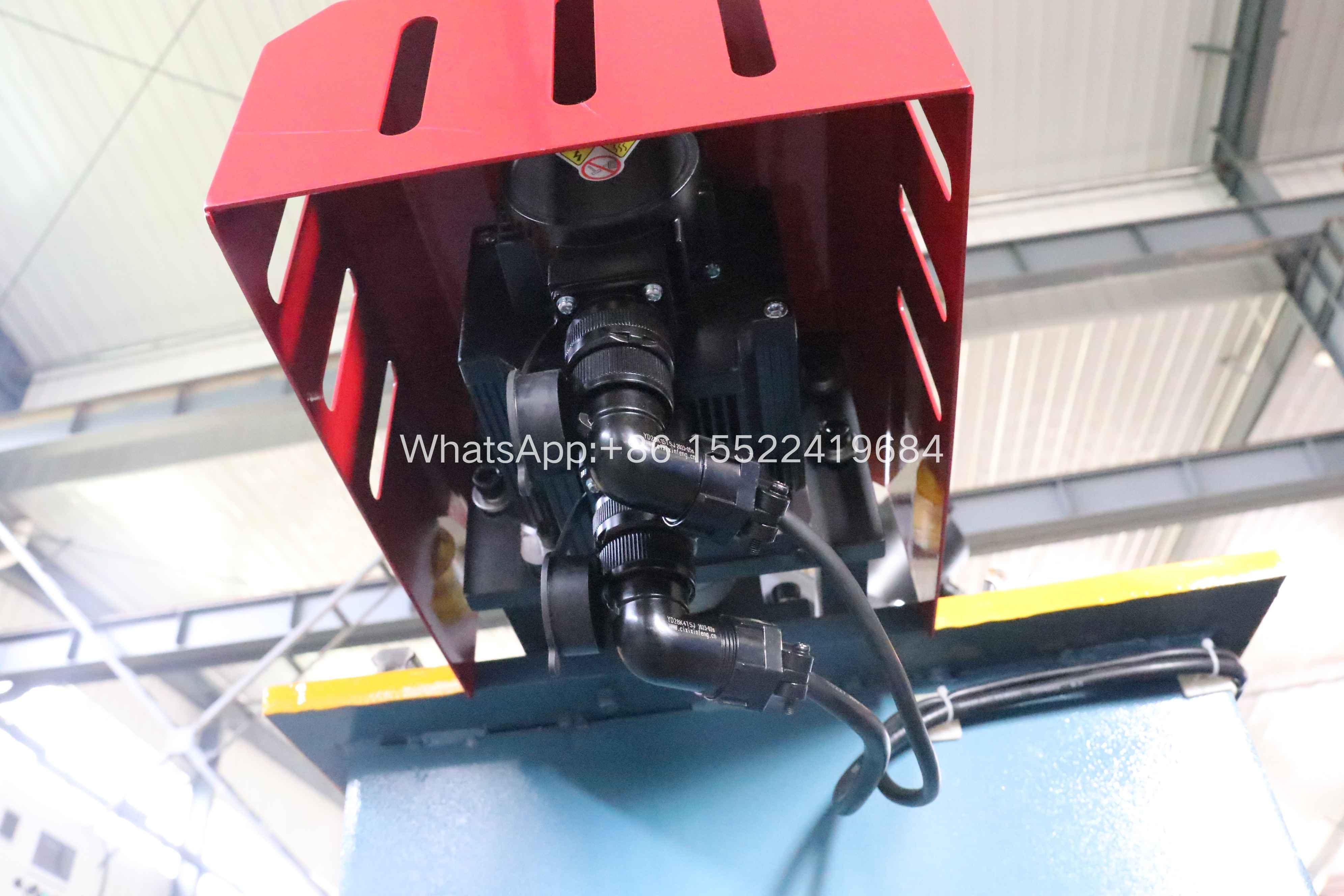

Servo tracking cutting, servo motor power: 1.5 kW |
| Shearing Knif |
Cr12MoV. The shearing blade is heat - treated to HRC 58 - 60℃ |
| Loading Rack |
2.5 - ton vertical manual uncoiler, 2.5T * 300mm |
| Receiving Rack |
One 3 - meter receiving rack (manual, 1 set). It should be painted blue to match the equipment. The gray parts should be changed to blue to match the equipment. |
| Shaft Diameter |
50mm solid shaft with anti - backstop pad. Made of high - quality 45# forged steel. |
| Operating Speed |
Without punching, operating speed: 40 - 50m/min |
| Number of Rows |
10 - row forming |
| Wheel |
Bearing steel CR12 |
| Main Motor Power |
7.5KW, Hangzhou Xuhua (with K - type reducer) |
Why Choose Us
Boasting over 28 years of experience in the field and more than 1,200 successful installations worldwide, we have established ourselves as a reliable leader in roll forming technology. Our equipment is built to adhere to strict CE and ISO standards, ensuring consistent quality and safe operation at all times. For added peace of mind, we offer extended warranty plans that can cover your purchase for up to 18 months. To ensure your machines operate at peak performance, we also provide professional on-site setup and hands-on operator training with every unit.
About Us
Haixing Tianjin is a leading provider of advanced cold forming technology, offering precision-engineered machinery specifically designed for the roofing and construction industries. With over 28 years of industry experience, we have built a strong global reputation, serving clients in more than 150 countries with dependable, high-performance roll forming systems. Certified by CE and ISO, we combine China's strong manufacturing capabilities with international quality standards, ensuring steady performance and exceptional product quality across our entire range of offerings.
