Product Description

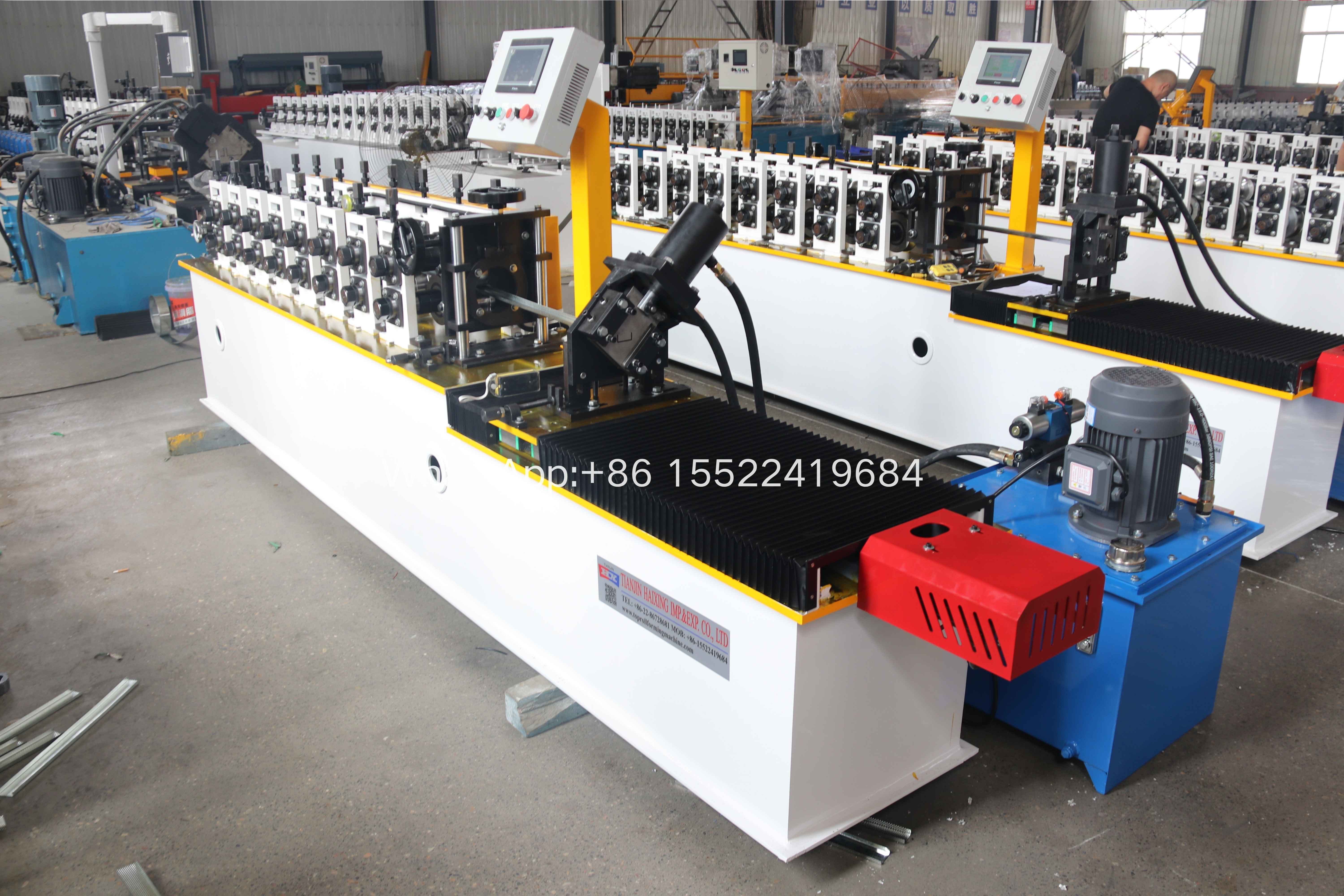

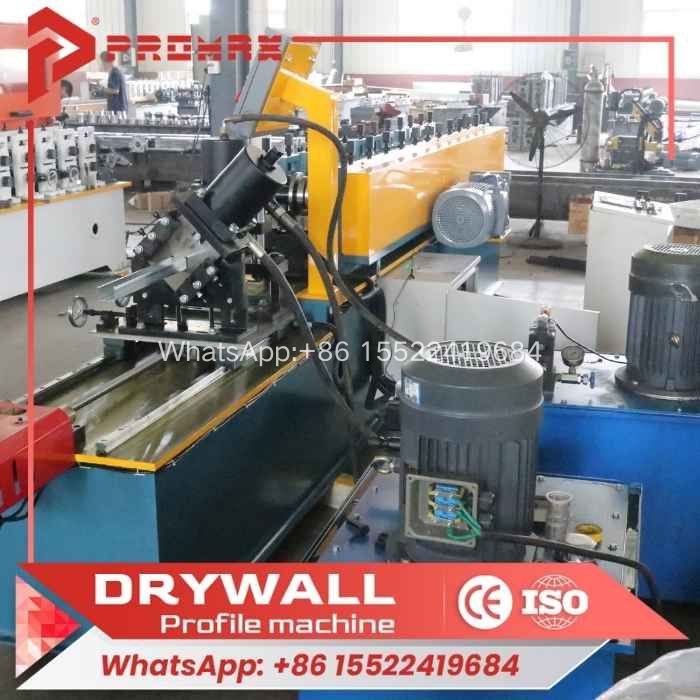

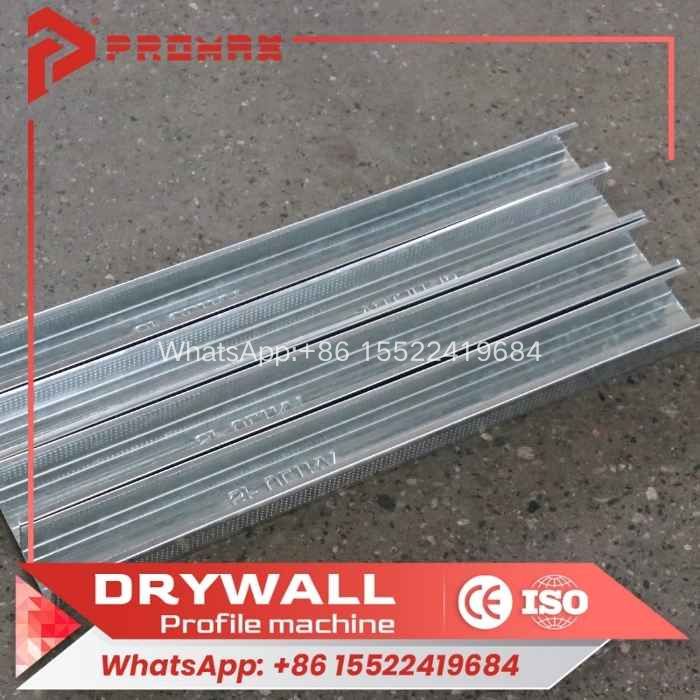

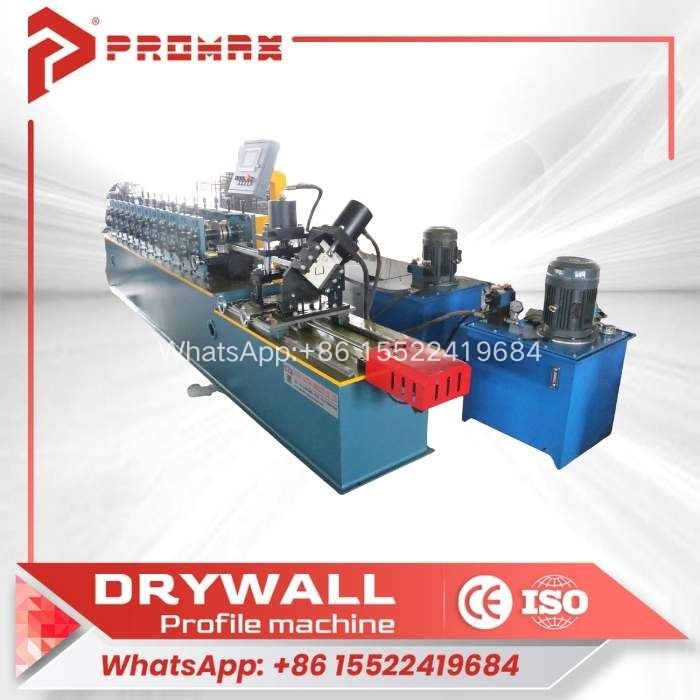

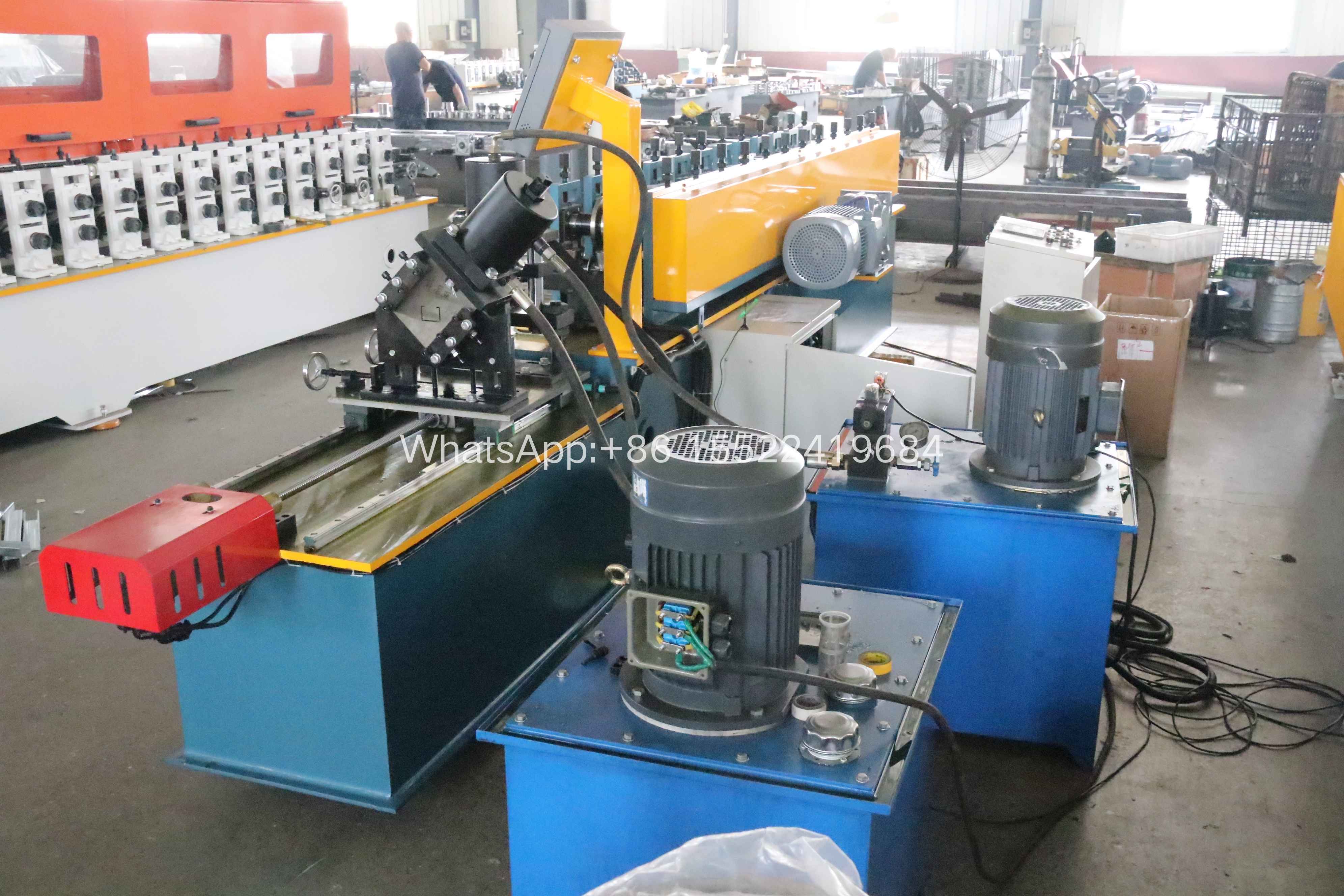

Our advanced C-Section Roll Forming Machine (metal stud machine) is engineered as a high-performance metal stud maker for precise, consistent C-purlins and ceiling channels. It delivers exceptional efficiency and productivity through automated, continuous operation—far surpassing traditional methods. Guaranteeing superior profile precision, it ensures structural integrity while minimizing material waste. Built for robustness and durability, it offers reliable, long-term performance with minimal maintenance. With operational flexibility for quick specification adjustments and a competitive ceiling channel machine price, it’s a cost-effective solution that strengthens your competitive edge in construction and industrial sectors.
| Dimensions |
5900*900*1500mm |
| Weigh |
2400kg |
| Color |
Blue |
| Feed Thickness |
0.45-0.9mm |

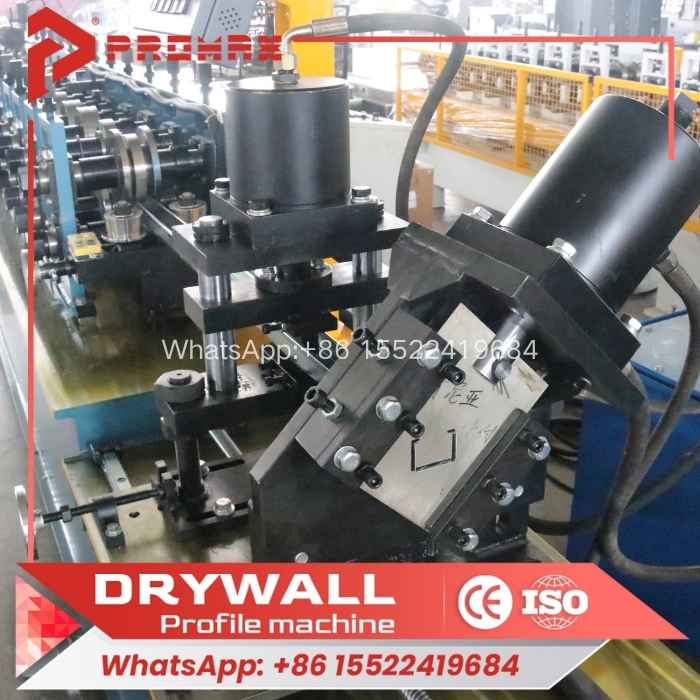

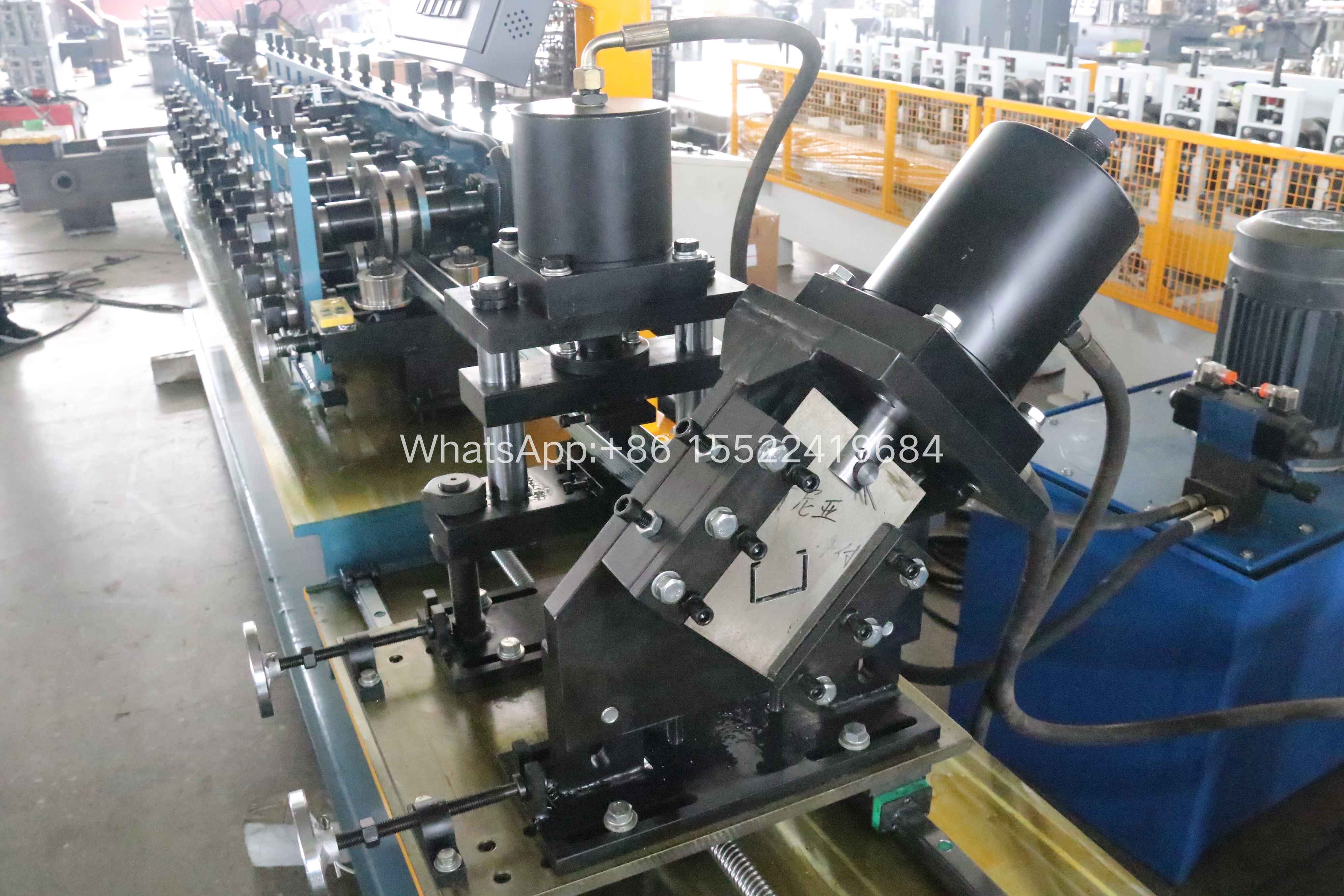

| Punching and Cutting |
Servo tracking cutting, servo motor power: 1.5 kW |
| Shearing Knif |
Cr12MoV. The shearing blade is heat - treated to HRC 58 - 60℃ |
| Loading Rack |
2.5 - ton vertical manual uncoiler, 2.5T * 300mm |
| Receiving Rack |
One 3 - meter receiving rack (manual, 1 set). It should be painted blue to match the equipment. The gray parts should be changed to blue to match the equipment. |
| Shaft Diameter |
50mm solid shaft with anti - backstop pad. Made of high - quality 45# forged steel. |
| Operating Speed |
Without punching, operating speed: 40 - 50m/min |
| Number of Rows |
12- row forming |
| Wheel |
Bearing steel CR12 |
| Main Motor Power |
7.5KW, Hangzhou Xuhua (with K - type reducer) |
