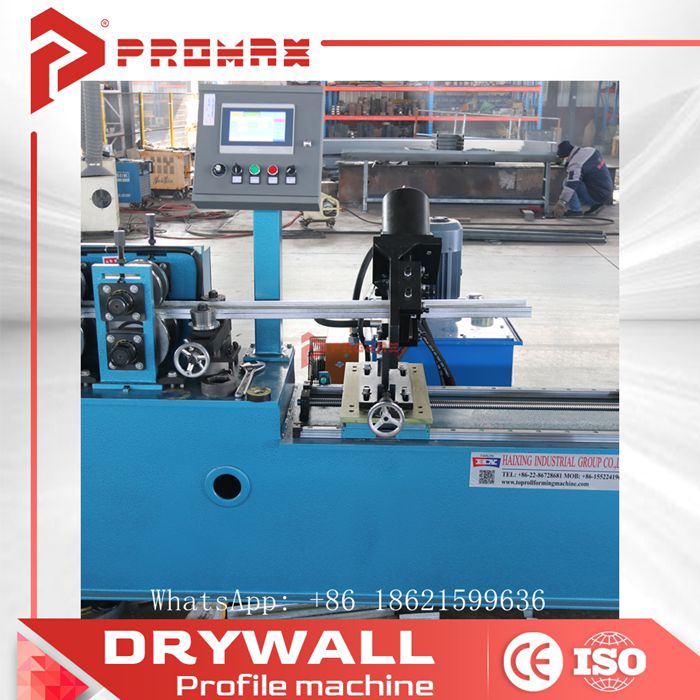

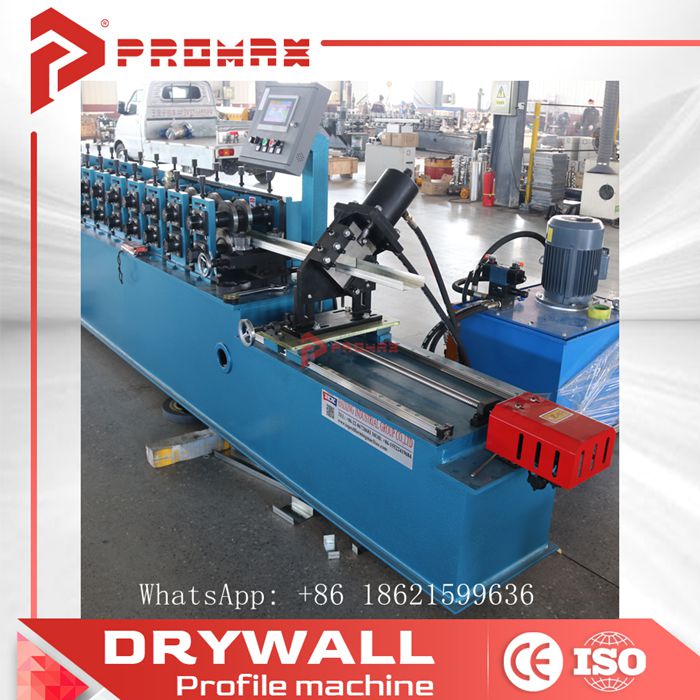

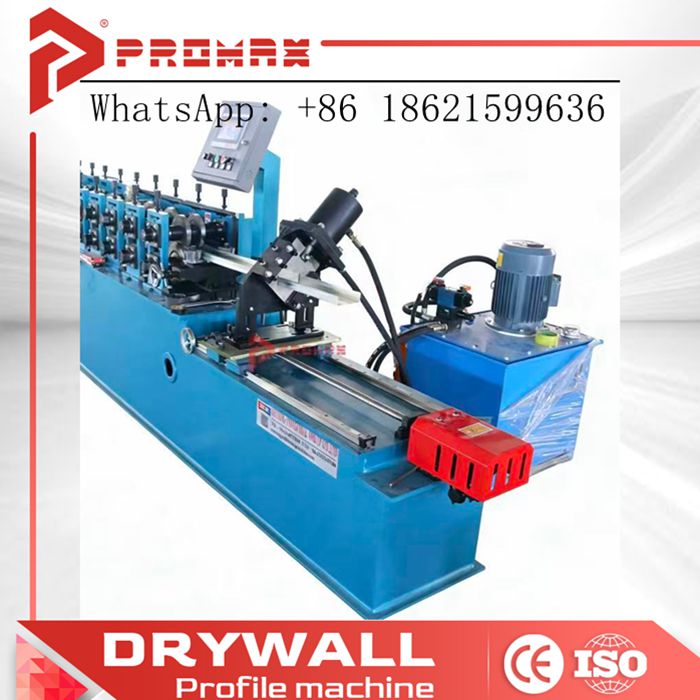

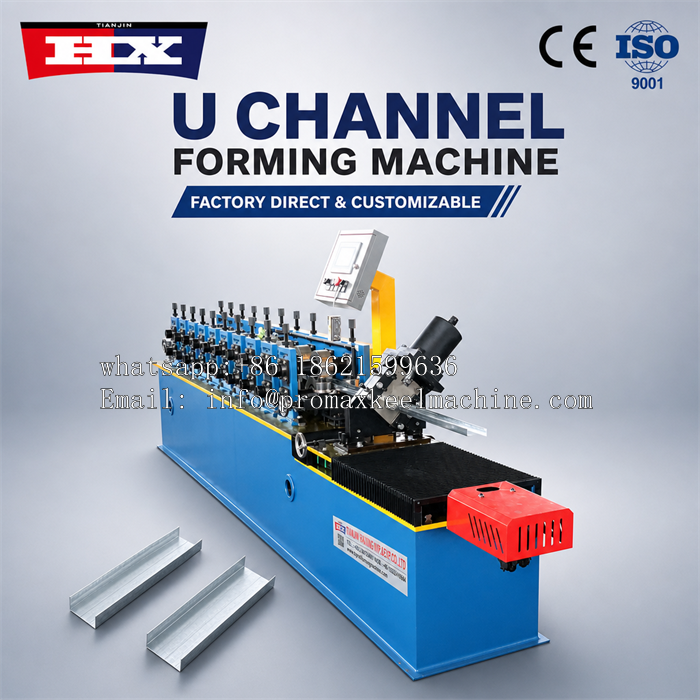

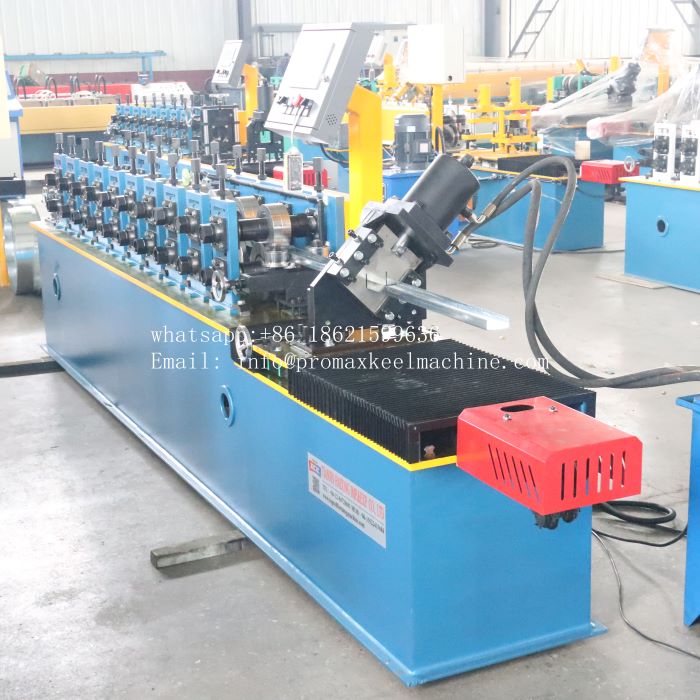

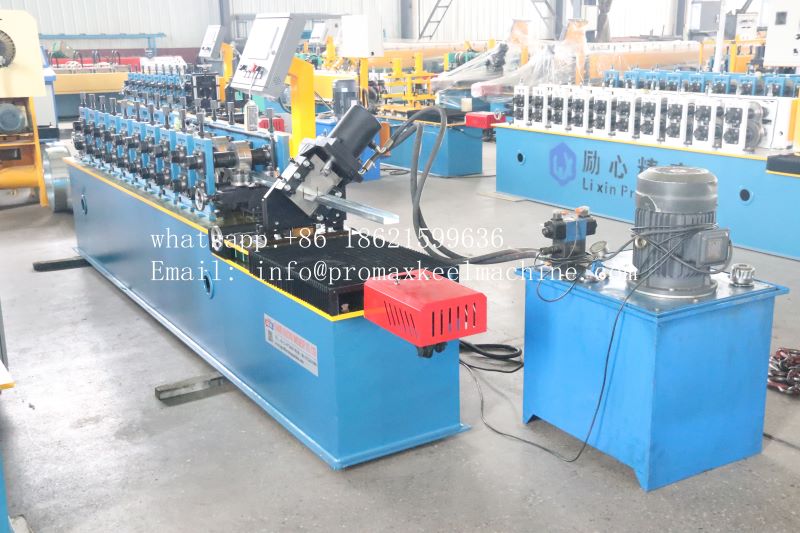

Track roll forming machine

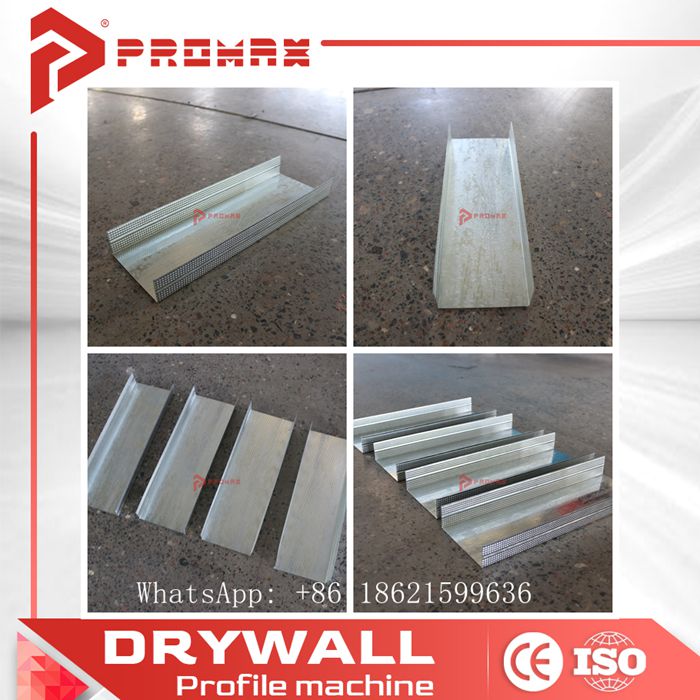

Track roll forming machine is a fully integrated, heavy-duty cold roll forming system engineered to continuously convert metal coils into consistent, dimensionally accurate U‑shaped profiles. Designed for mass production and long service life, it delivers stable performance, tight tolerances, and flexible customization for construction, infrastructure, automotive, racking, and steel structure industries.

Track roll forming machine
1	Formed Material	GI/GL, PPGI/PPGL
2	Thickness	0.45-0.9mm
3	Decoiler	Manual decoiler(will give you as free)
4	Roller station	10 rows(As your requirement)
5	Material of rollers	45#steel, forging with chromium plate 0.05mm
6	Cutter	Cr12 Mov quenched treatment 58-60℃
7	Power	7.5+5.5Kw
8	Control system Language	English, Spanish, etc.(Support multiple languages)
9	Voltage	380V, 50HZ, 3Phase
10	Diameter of shaft	50mm solid shaft

Core Advantage of the U channel roll forming machine:

One‑pass continuous forming ensures uniform profile geometry, surface finish, and straightness with minimal material waste.

High rigidity and durability: Heavy‑duty welded frame, hardened alloy rollers, and precision gearboxes guarantee stable running under long‑hour production.

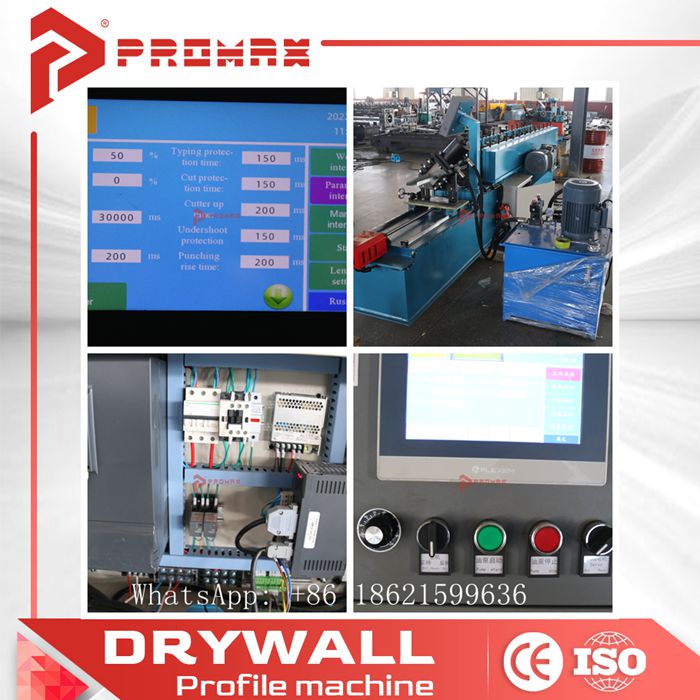

Intelligent control: PLC + touchscreen HMI enables easy parameter setting, production monitoring, fault diagnosis, and quick size changeover.

working flow:

Hydraulic Decoiler: Loads and feeds coils smoothly with tension control

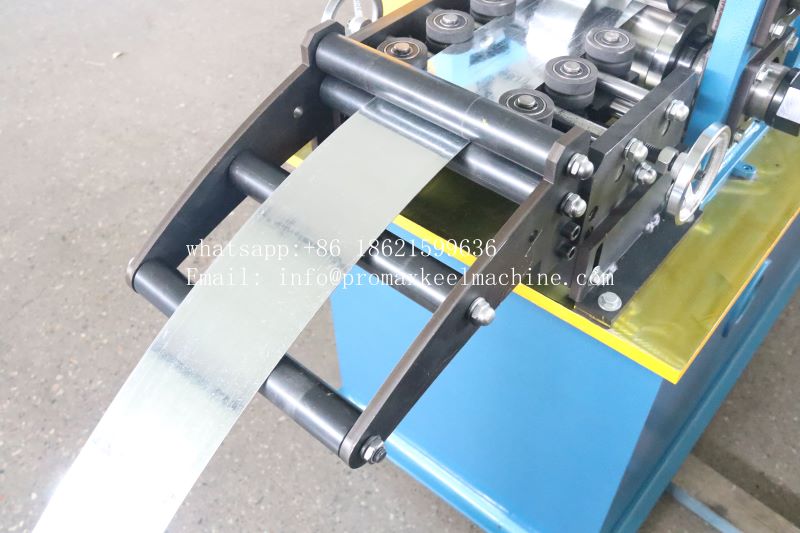

Feeding Unit: Corrects coil flatness and ensures precise feeding length.

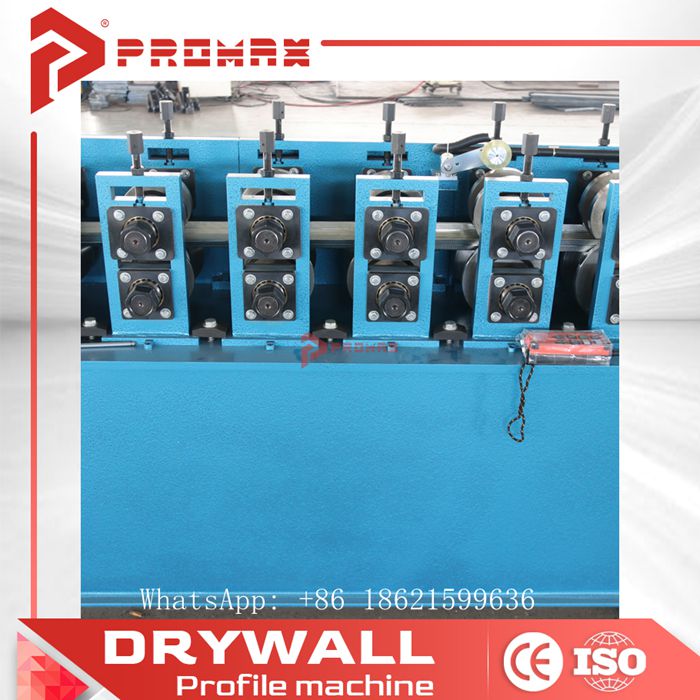

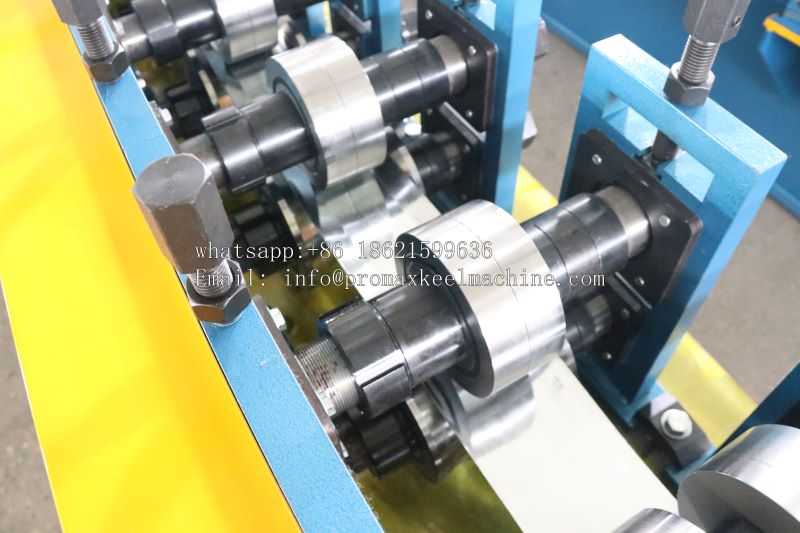

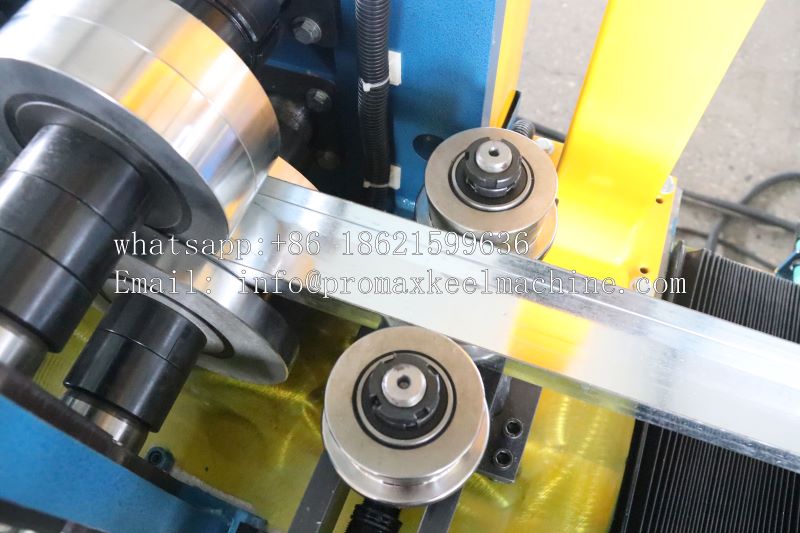

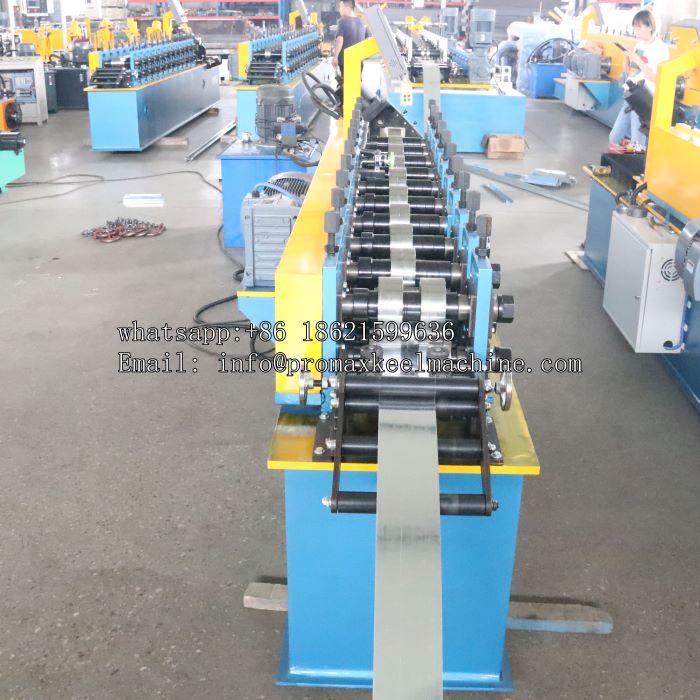

Roll Forming Stand: Multi‑stand progressive roller dies gradually form the U channel.

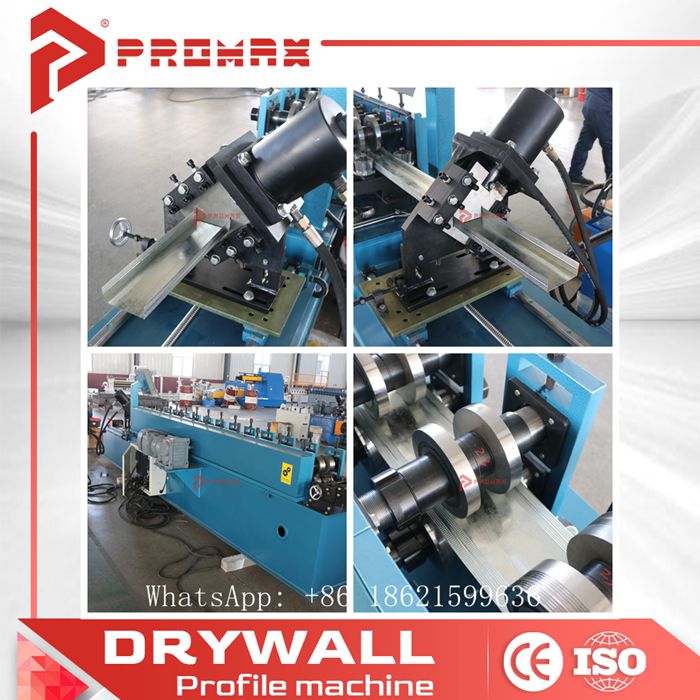

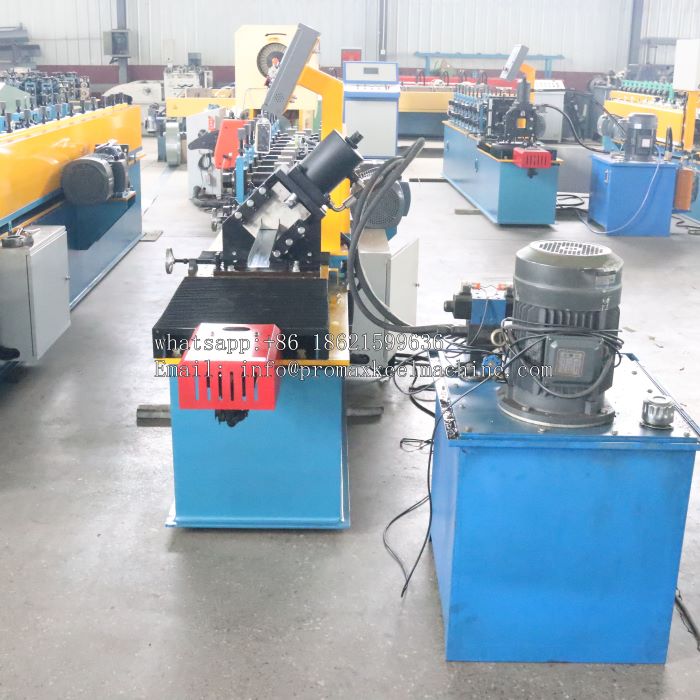

Hydraulic Cutting: Cuts profiles to preset length without stopping the line.

Runout Table: Collects finished products neatly for packaging or further processing.

Service and Support

We understand the concerns of long-distance equipment procurement and therefore provide:

1.Clear operation and maintenance manuals in English/Spanish.

2.Critical spare parts kits to ensure timely replacement of wear-prone components.

3.Installation guidance and operational training available via video conferencing.

Why Choose Us

All-in-One Engineering Solutions
From initial concept to final production, we provide comprehensive support tailored to your needs.

Built to Last
Our machines are engineered for durability, delivering reliable performance over years of continuous operation.

Precision You Can Trust
Achieve consistent, micron-level accuracy in every product with our advanced roll forming technology.

Superior Materials
We use only premium-grade components to ensure strength, stability, and longevity.

Advanced Automation Systems
Equipped with cutting-edge electrical and control systems for enhanced efficiency and precision.
