Product Description

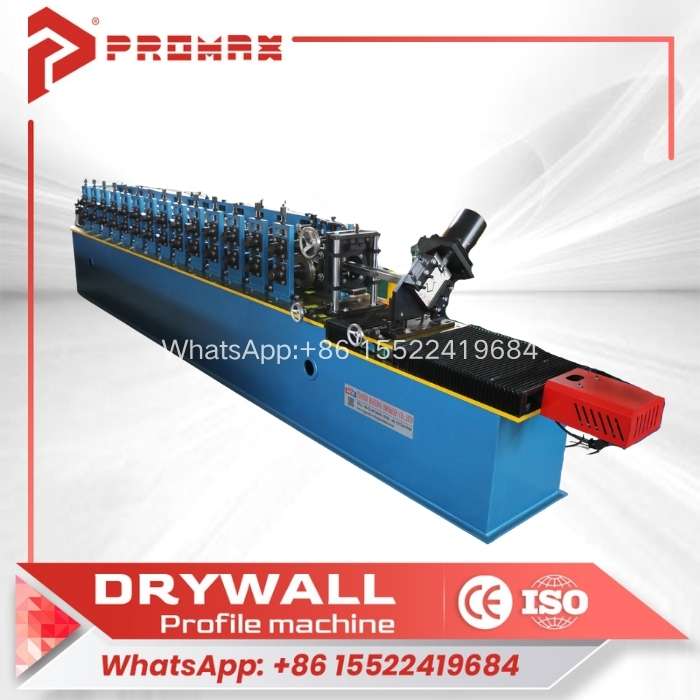

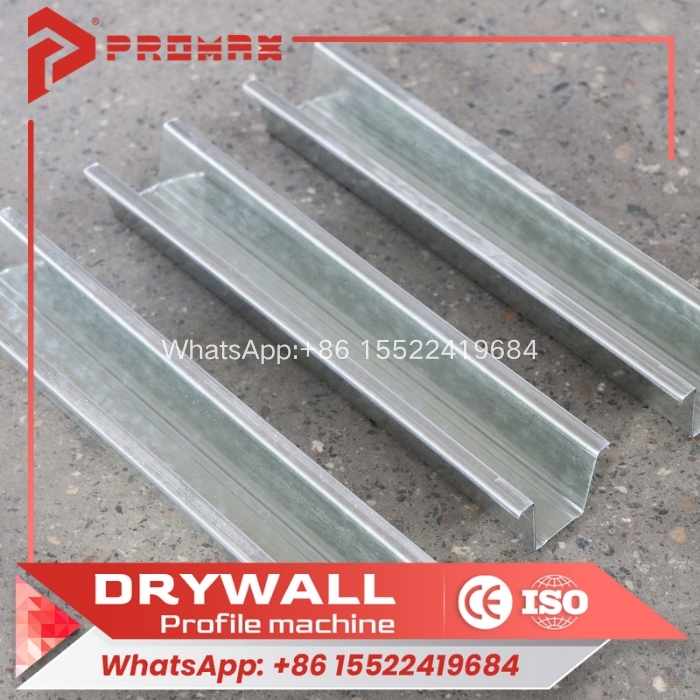

Our high-performance Omega keel machine (channel rolling machine) is a professional omega machine with standout precision & speed. It produces ultra-consistent Omega profiles via high-speed automated operation, cutting production time by 30%+ and slashing material waste. Built with heavy-duty steel for long-lasting durability, it needs minimal maintenance and offers a competitive keel machine price—ideal for efficient, cost-effective construction.
| Dimensions |
5200*900*1500mm |
| Weigh |
2200kg |
| Color |
blue |
| Feed Thickness |
Feed thickness: 0.45-0.9mm |

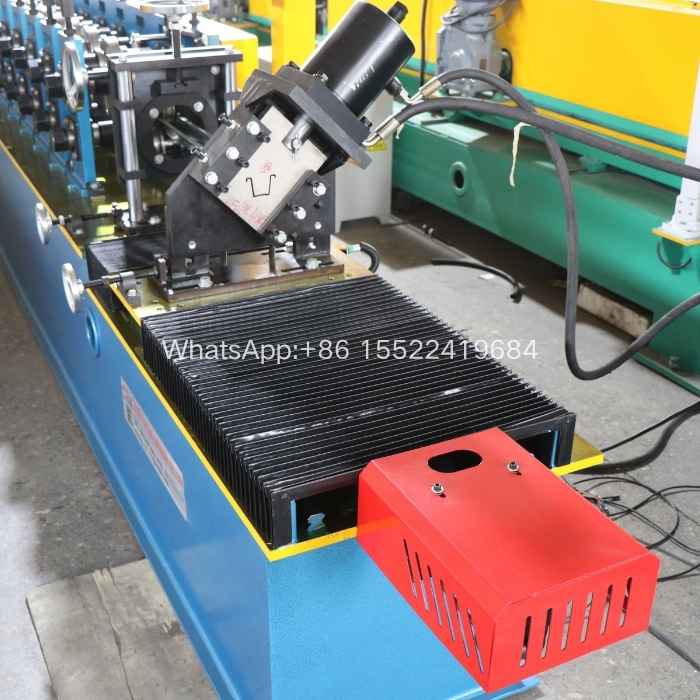

| Punching and Cutting |

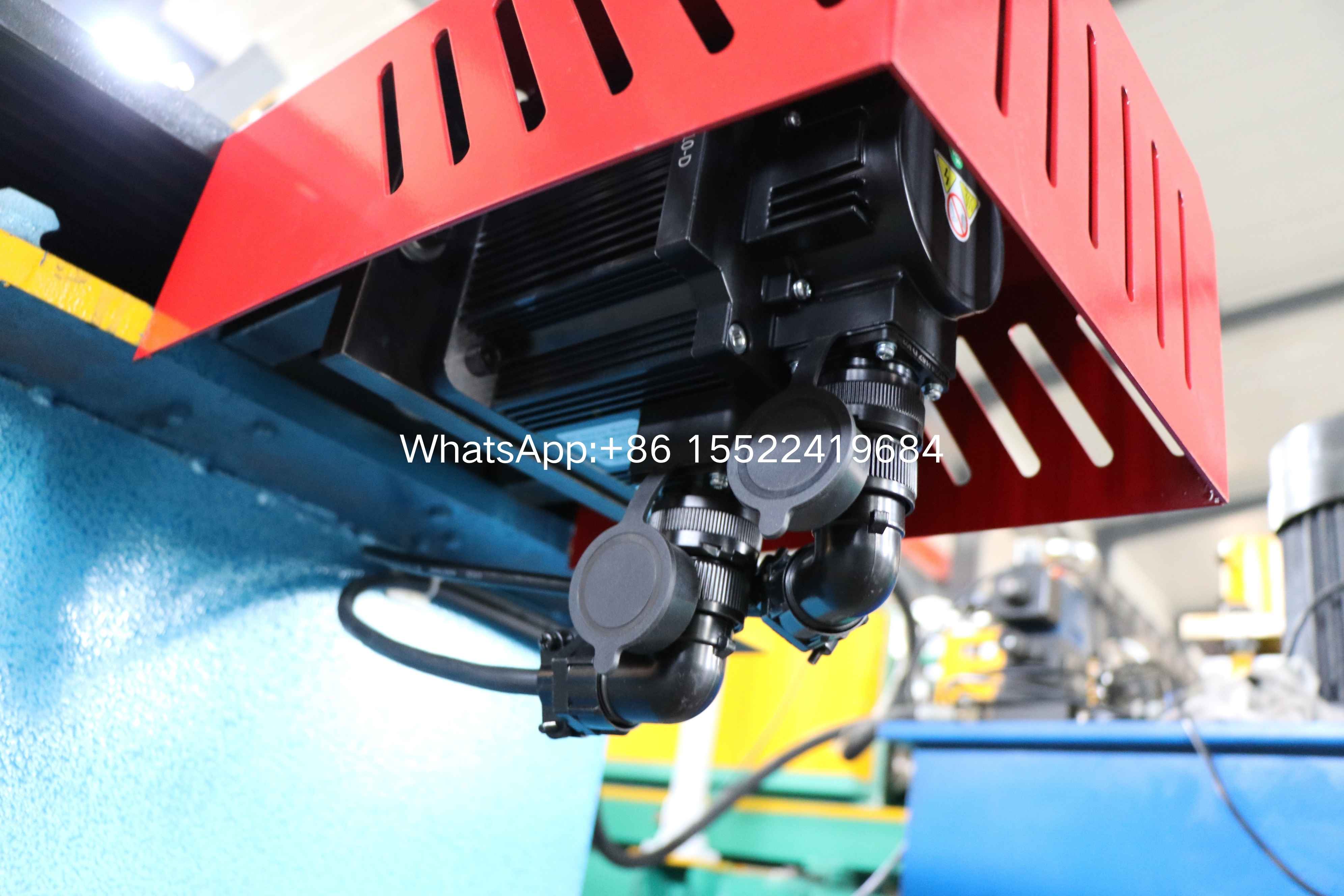

Servo tracking cutting, servo motor power: 1.5 kW |
| Shearing Knif |
Cr12MoV. The shearing blade is heat - treated to HRC 58 - 60℃ |
| Loading Rack |
1.5 - ton vertical manual uncoiler, 1.5T * 300mm |
| Receiving Rack |
One 3 - meter receiving rack (manual, 1 set). It should be painted blue to match the equipment. The gray parts should be changed to blue to match the equipment. |
| Shaft Diameter |
55mm Solid Shaft with Lock Washer, High-Quality 45# Steel, Forged Component |
| Operating Speed |
operating speed: 45m/min |
| Number of Rows |
12- row forming |

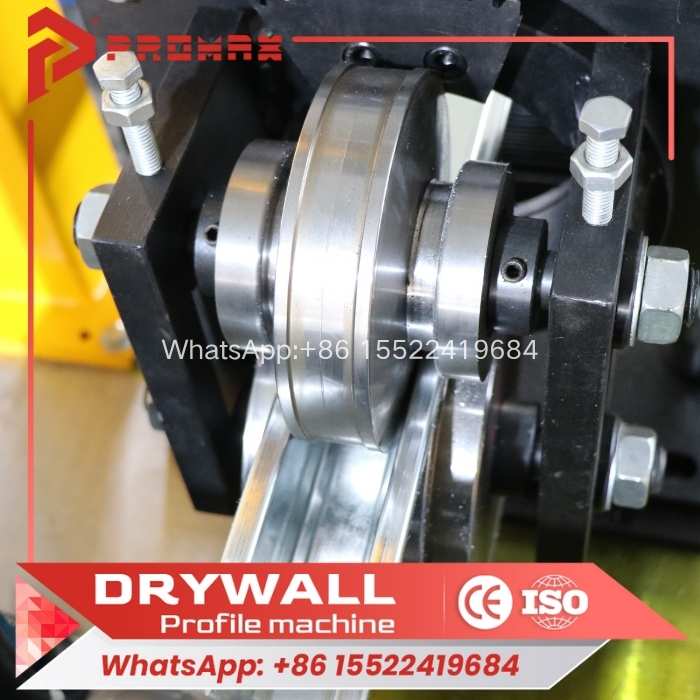

| Wheel |
Bearing steel CR12 |
| Main Motor Power |
7.5KW, Hangzhou Xuhua (with K - type reducer) |
Why Choose Us
Boasting over 28 years of experience in the field and more than 1,200 successful installations worldwide, we have established ourselves as a reliable leader in roll forming technology. Our equipment is built to adhere to strict CE and ISO standards, ensuring consistent quality and safe operation at all times. For added peace of mind, we offer extended warranty plans that can cover your purchase for up to 18 months. To ensure your machines operate at peak performance, we also provide professional on-site setup and hands-on operator training with every unit.
About Us
Haixing Tianjin is a leading provider of advanced cold forming technology, offering precision-engineered machinery specifically designed for the roofing and construction industries. With over 28 years of industry experience, we have built a strong global reputation, serving clients in more than 150 countries with dependable, high-performance roll forming systems. Certified by CE and ISO, we combine China's strong manufacturing capabilities with international quality standards, ensuring steady performance and exceptional product quality across our entire range of offerings.
