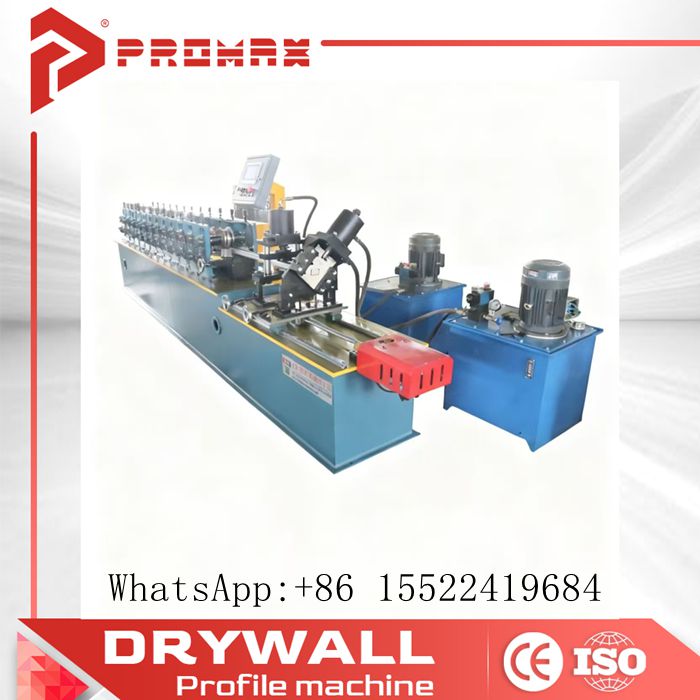

C channel roll forming machine

C Channel Roll Forming Machine – Drywall Profile & Metal Stud Forming Equipment

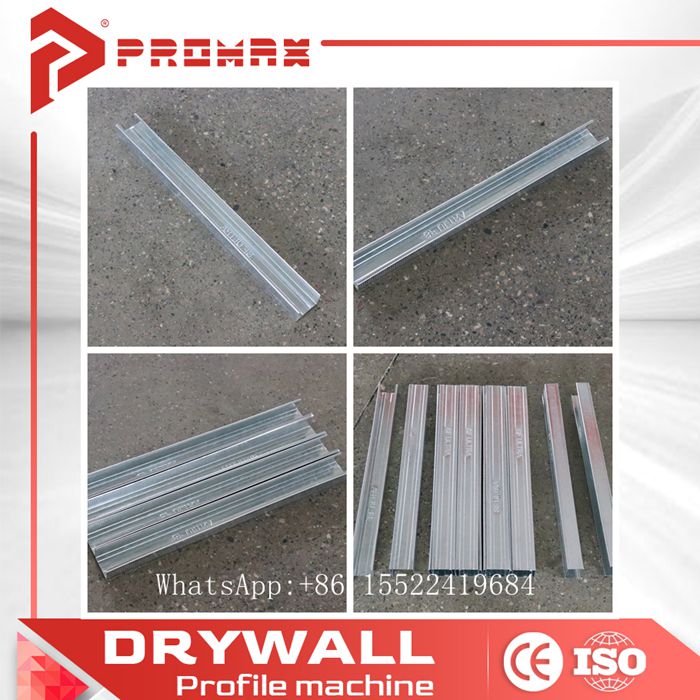

The C Channel Roll Forming Machine is a professional device designed for producing high-precision C-shaped metal channels (widely used as drywall profiles and metal studs in construction). It processes pre-painted galvanized steel, aluminum, or other metal coils, integrating automatic roll forming, PLC-controlled cutting, and continuous feeding systems.

Featuring high automation, superior precision, and excellent efficiency, this machine delivers consistent, dimensionally accurate C channels with minimal manual intervention. Its user-friendly operation and durable components make it an ideal choice for construction material manufacturers seeking stable, high-output forming solutions.

Contact us to get a more favorable C channel roll forming machine price!

4. Why Choose This Machine

• High Automation：One-click start/stop reduces labor costs and boosts production efficiency.

• Superior Precision：Micron-level forming accuracy ensures uniform C channel dimensions.

• Excellent Efficiency：15-20m/min forming speed meets large-batch production needs.

• User-Friendly Operation：Intuitive PLC interface, easy to learn and operate.

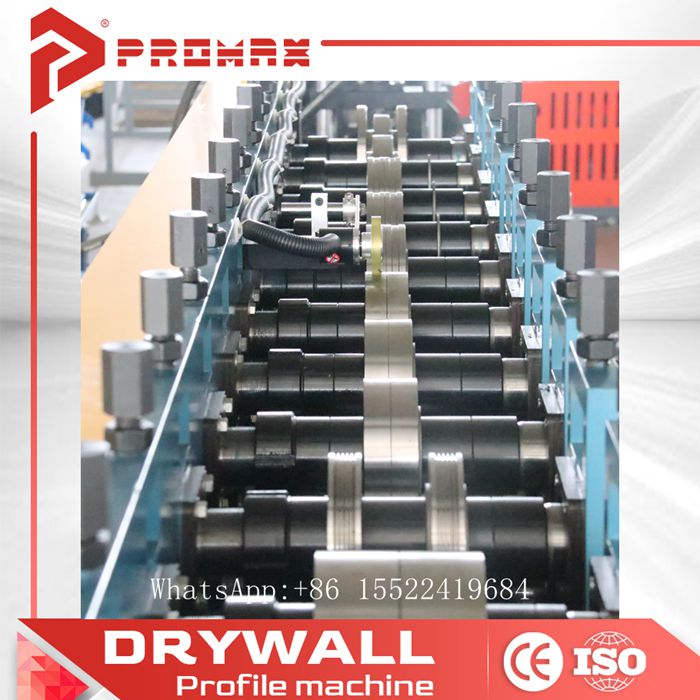

• Durable Performance：High-strength steel rollers (forged + chrome-plated) ensure long service life.

5. About the Supplier

This machine is provided by Haixing Industry Group – a leading roll forming equipment manufacturer with 28+ years of experience. We serve 5,000+ clients in 150+ countries, offering:

• Customized equipment design

• End-to-end technical support

• Lifetime after-sales service

• Strict quality control (CE/ISO certified)

6. Contact Information

• Email: info@hx-machinery.com

• WhatsApp: 0086 15522419684
